Quick connect fully insulated female funnel entry terminal 105°c, conductor sizes 0.5 - 1.5mm2, 50pcs, yellow
Art.-No. 924-00442 | QDF5-6F-BS/PA66/CU-YE |

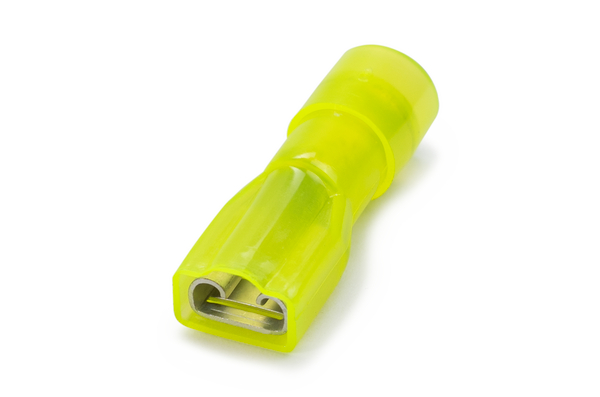

Fully insulated quick connect terminal 105°C, QDF5-6F.

QDF Series (Fully Insulated 105°C), Front View

Finish

Fully insulated
Double grip for high vibration industrial applications
Colour coded for easier identitfication
Enhanced Pull-Out Force which provides a stronger, more secure hold
Additional copper sleeve for premium vibration
Packaged in a resealable bag
REACH compliant

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

Quick Connect Fully Insulated Female Funnel Entry 105 °C >

Base Data

Application	The QDF-6F Series uses tough, transparent nylon (PA66) insulation, rated to 105°C, making it perfect for areas near motors, transformers, or other heat-generating components where standard terminals might fail over time. The funnel entry helps guide the wire into place quickly and cleanly, reducing the chance of strand damage and speeding up installation. The double grip crimp keeps the connection secure, even in areas exposed to vibration or movement. Crimp using the HYYT7 tool for consistent, safe, and long-lasting connections.
Colour	Yellow (YE)
Description	QC FEMALE FUNNEL YELLOW D/GRIP 105° F/INS
Local order number	QDF5-6F
Material	Brass (BS), Polyamide 6.6 (PA66), Copper (CU)
Max Current	24A
Max Voltage	300V
PART DESCRIPTION	QDF5-6F-BS/PA66/CU-YE
Package Content	50pcs.
Package Content packed in	bag
Product Family	Double Grip Pre-Insulated Terminals
Product Group	Quick Connect Fully Insulated Female Funnel Entry 105 °C
Type	QDF5-6F

Product Dimensions

Conductor Size Range mm²	4.0-6.0mm²
Diameter (D)	6.6mm
Length (L)	26mm
Length (L2)	14mm
Width (W)	9mm
Width (W2)	6.7mm

Downloads

Specifications

Halogen-free	Yes
Operating Temperature	+105 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

GTIN-13 / EAN

9349519000622

More Information

Accessories

HYYT7 924-00316
Terminal Crimp Tools
