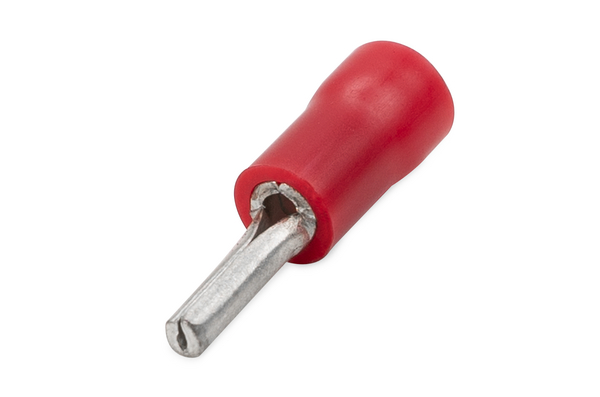

Pin connector terminal single grip, conductor sizes 0.5 - 1.5mm2, 100pcs, red

Art.-No. 924-00547

| 1P10-CU/PVC-RD

|

Three conductor sizes for versatile wiring needs
Colour coded for easier identification
Recommended for general purpose electrical installations
Packaged in resealable bag
REACH compliant

Add to watchlist

Request quote

Downloads

More products in this product group:

Pin Connectors

Base Data

Application	Single grip pin connectors are a practical choice for connecting wires to terminal blocks or plug-in connectors where a solid pin is needed. Ideal for compact installations, they offer straightforward assembly and reliable contact. The PVC insulation supports electrical safety and helps reduce strain on the wire. Use with the HYYT1 crimping tool for consistent and efficient results.
Colour	Red (RD)
Description	Pin connector single grip, conductor size 0.5 - 1.5mm², red
Local order number	1P10
Material	Copper (CU), Polyvinylchloride (PVC)
Max Current	19A
Max Voltage	600V
PART DESCRIPTION	1P10-CU/PVC-RD
Package Content	100pcs.
Package Content packed in	bag
Product Family	Single Grip Pre-Insulated Terminals
Product Group	Pin Connectors
Type	1P10

Product Dimensions

⌀ (D2)	2.00mm
Conductor Size Range mm²	0.5-1.5mm²
Diameter (D)	4.3mm
Length (L)	20mm
Length (L2)	10mm
Length (L3)	10mm

Downloads

Specifications

Operating Temperature	+75 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

GTIN-13 / EAN

9349519006709

More Information

Accessories

HYYT1 924-00315
Terminal Crimp Tools
