Male Bullet Funnel Entry
Art.-No. 924-00446 | BDM2-5-BS/PVC/CU-BU |

Copied

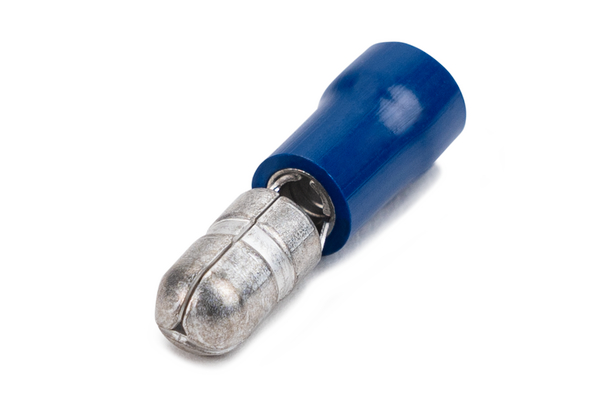

Male bullet terminal, BDM2-5.

    • Double grip for high vibration industrial applications
    • Colour coded for easier identitfication
    • Enhanced Pull-Out Force which provides a stronger, more secure hold
    • Additional copper sleeve for premium vibration
    • Copper terminal body with PVC insulation for enhanced wire insulation
    • Packaged in a resealable bag
    • REACH compliant
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The Double Grip Male Bullet Terminals are recommended for connecting electrical conductors in challenging industrial applications. Manufactured with an additional copper sleeve and PVC insulation, for maximum vibration resistance and premium wire insulation. The HYYT7 terminal application tool is recommended.
    Bestell Typ BDM2-5
    Bezeichnung MALE BULLETT BLUE DOUBLE GRIP 1.5MM²-2.5MM²
    Farbe Blue (BU)
    Inhalt 100ST
    Inhalt per bag
    Material Brass (BS), Polyvinylchloride (PVC), Copper (CU)
    Produktbezeichnung BDM2-5-BS/PVC/CU-BU
    Produktfamilie Double Grip Pre-Insulated Terminals
    Produktgruppe Male Bullet Funnel Entry
    Typ BDM2-5
    ⌀ D 4.9mm
    ⌀ D2 5.0mm
    Leiterquerschnitt (mm²) von bis 1.5-2.5mm²
    Länge (L) 22.5mm
    Länge (L2) 11mm
    Länge (L3) 11.5mm
    Nennspannung 300V
    Nennstrom 15A
    Betriebstemperatur +75 °C
    ROHS konform Yes
    Zulassungen/Normen
    EAN / GTIN 9349519000844
    Ursprungsland CN
    Zollwarentarif Nr. 85369010
