Male Bullet Funnel Entry
Art.-No. 924-00447 | BDM5-5-BS/PVC/CU-YE |

Copied

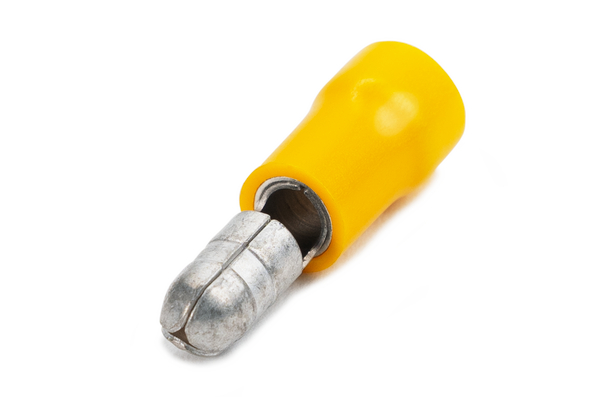

Male bullet terminal, BDM5-5.

    • Double grip for high vibration industrial applications
    • Colour coded for easier identitfication
    • Enhanced Pull-Out Force which provides a stronger, more secure hold
    • Additional copper sleeve for premium vibration
    • Copper terminal body with PVC insulation for enhanced wire insulation
    • Packaged in a resealable bag
    • REACH compliant
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The Double Grip Male Bullet Terminals are recommended for connecting electrical conductors in challenging industrial applications. Manufactured with an additional copper sleeve and PVC insulation, for maximum vibration resistance and premium wire insulation. The HYYT7 terminal application tool is recommended.
    Bestell Typ BDM5-5
    Bezeichnung MALE BULLETT YELLOW DOUBLE GRIP 4MM²-6MM²
    Farbe Yellow (YE)
    Inhalt 50ST
    Inhalt per bag
    Material Brass (BS), Polyvinylchloride (PVC), Copper (CU)
    Produktbezeichnung BDM5-5-BS/PVC/CU-YE
    Produktfamilie Double Grip Pre-Insulated Terminals
    Produktgruppe Male Bullet Funnel Entry
    Typ BDM5-5
    ⌀ D 7mm
    ⌀ D2 5.0mm
    Leiterquerschnitt (mm²) von bis 4.0-6.0mm²
    Länge (L) 26mm
    Länge (L2) 14mm
    Länge (L3) 12mm
    Nennspannung 300V
    Nennstrom 24A
    Betriebstemperatur +75 °C
    ROHS konform Yes
    Zulassungen/Normen
    EAN / GTIN 9349519000851
    Ursprungsland CN
    Zollwarentarif Nr. 85369010
