Screw Fixing Mounts : KR6G5

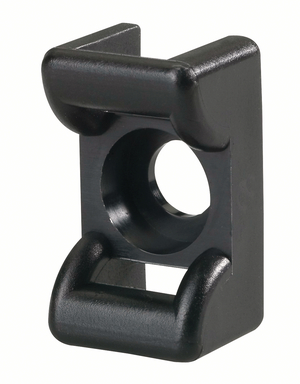

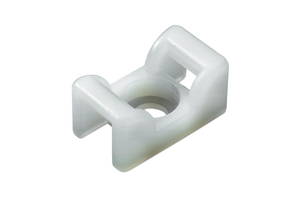

Screw Fixing Mount with curved design 18x12 natural, Cikkszám: 151-24619

Tulajdonságok

  • Curved design for additional cable support
  • Simple to install with a screw or bolt
  • Excellent security, particularly in areas of high vibration
  • Mounts are available in various sizes and materials

Tanúsítványok

Felhasználás

Designed specifically for holding heavier cable bundles these mounting bases can be used in many industries from Agriculture to Truck manufacture, they offer a very secure fixing and can be used with a wide variety of heavy duty cable ties up to 7.6 mm wide.

KR with curved design for KR-Ties az alábbi iparágban használhatóak

Colour Natural (NA)
Fixation Method Screw Mounting and Rivet
Mounting Screw Type M4
Pack Cont. 100pcs.
Package Quantity per pcs.
PART DESCRIPTION KR6G5-PA66-NA
Product Family KR with curved design for KR-Ties
Product Group Screw Fixing Mounts
Short Description Screw Fixing Mount with curved design 18x12 natural
Type KR6G5.NN3P

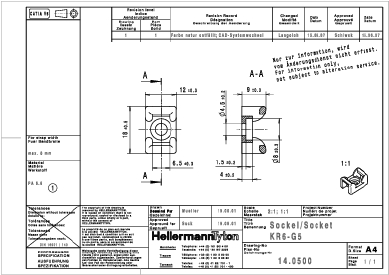

for Hole ∅ (FH) 4.5 mm
Height (H) 9.0mm
Height (H2) 4.0mm
Length (L) 18.0mm
Strap Width max. (G) 6.0mm
Width (W) 12.0mm
ELV compliant Dir. Art. 4 (2) YES
EN 45545-2 Results R22 HL3, R23 HL3
Flammability UL 94 V2
Hazardous good No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
Specifications NF EN 45545-2
EAN / GTIN 4031026122380
Packaging 1 - Height (m) 0.025m
Packaging 1 - Length (m) 0.2m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00065
Packaging 1 - Weight (kg) 0.125137kg
Packaging 1 - Width (m) 0.13m
Packaging 3 - Height (m) 0.17m
Packaging 3 - Length (m) 0.56m
Packaging 3 - Qty 3000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0171
Packaging 3 - Weight (kg) 3.97411kg
Packaging 3 - Width (m) 0.18m
Packaging 4 - Height (m) 1.171m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 144000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.124
Packaging 4 - Weight (kg) 211.56kg
Packaging 4 - Width (m) 0.8m
Weight 0.1kg
ETIM 6.0 EC000449
ETIM 7.0 Key EC000449
