Cable Ties outside serrated for marking : LR55R

Releasable Cable Tie 195x4.7 mm, heat stabilised, black, Cikkszám: 115-00002

Tulajdonságok

  • Releasable and reusable cable tie

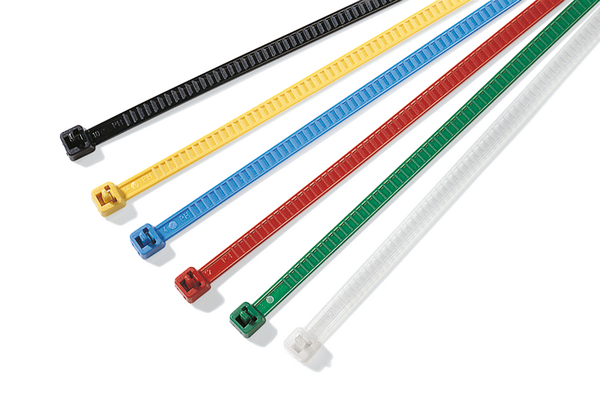

  • Various colours for applications needing colour coding
  • Extended trigger for simple and quick release of ties
  • Risk of accidental release is minimised
  • Outside serration prevents damage to cable insulation

Tanúsítványok

Felhasználás

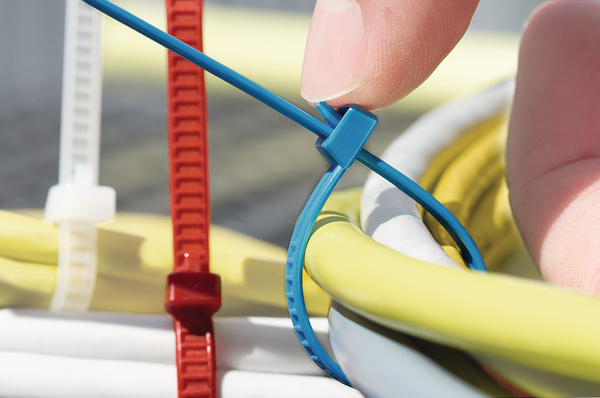

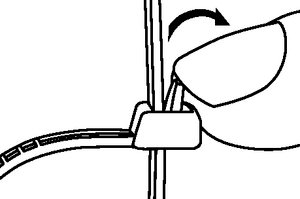

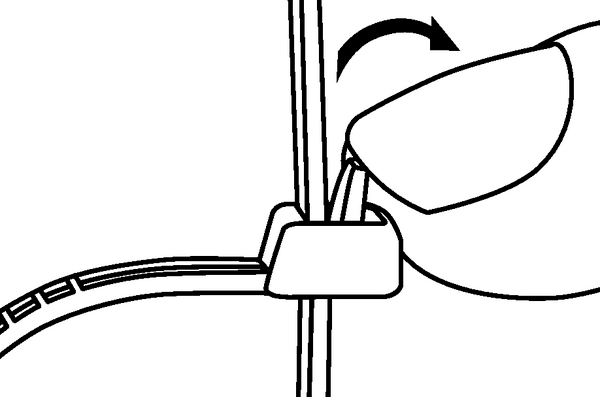

Releasable cable ties of our LR55-Series offer some extra benefits. Their serration is on the outside of the cable tie. This will minimise the risk of damage to cables or other elements. Additionally LR55 cable ties are available in different colours – optimally suited for temporary identification within logistic, packaging, cable harness production or for testing purposes. The strap is released when pushing the extended pawl upwards. The risk of opening the cable tie accidentally is minimised.

LR55-Series az alábbi iparágban használhatóak

Colour Black (BK)
Identification Plate Position none
Pack Cont. 25pcs.
Package Quantity per pcs.
PART DESCRIPTION LR55R-PA66HS-BK
Product Family LR55-Series
Product Group Cable Ties outside serrated for marking
Releasable Closure (Yes/No) Yes
Short Description Releasable Cable Tie 195x4.7 mm, heat stabilised, black
Tie Closure plastic pawl
Type LR55R.HB1P
Variant Outside Serrated
Bundle ∅ max. 50.0mm
Bundle ∅ min. 2.0mm
Length (L) 196mm
Min.Tensile Strength 245N
Thickness (T) 1.2mm
Width (W) 4.7mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous good No
Material Polyamide 6.6, heat stabilised (PA66HS)
Operating Temperature - °C -40 °C to +105 °C, (+105 °C for 500 h)
Specifications

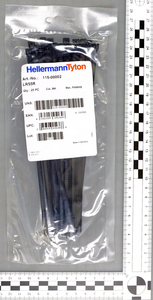

EAN / GTIN 4031026251646
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.12m
Packaging 1 - Qty 25
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00127
Packaging 1 - Weight (kg) 0.03301kg
Packaging 1 - Width (m) 0.265m
Packaging 2 - Height (m) 0.17m
Packaging 2 - Length (m) 0.288m
Packaging 2 - Qty 1000
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0087
Packaging 2 - Weight (kg) 1.4504kg
Packaging 2 - Width (m) 0.178m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 4000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 6.4516kg
Packaging 3 - Width (m) 0.398m

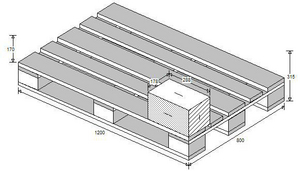

Packaging 4 - Height (m) 1.235m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 80000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.186
Packaging 4 - Weight (kg) 151.6kg
Packaging 4 - Width (m) 0.8m
Weight 0.0275kg
ETIM 6.0 EC000046
ETIM 7.0 Key EC000046
