Cable Ties inside serrated : RELK2R

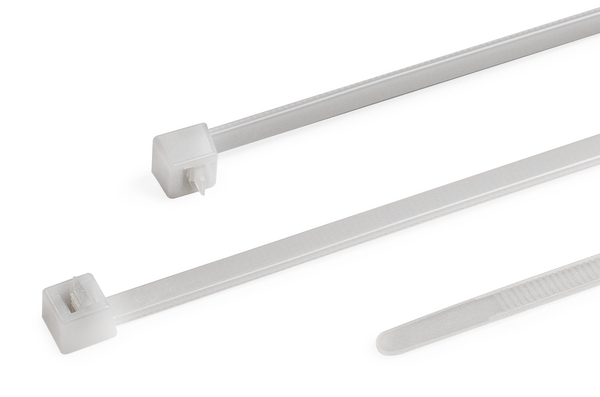

Releasable Cable Tie 200x4.6 mm, natural, Cikkszám: 115-02202

Tulajdonságok

  • Releasable and reusable cable tie
  • Available in black and natural colour
  • Extended trigger for simple and quick release of ties
  • RELK cable ties are inside serrated
  • Different lengths are available

Tanúsítványok

Felhasználás

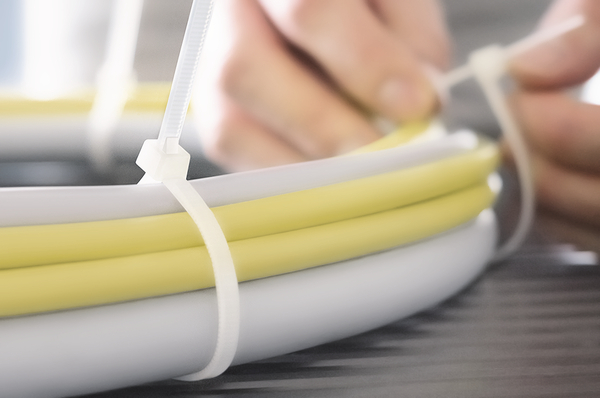

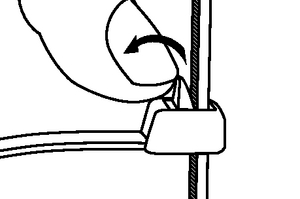

Used in a wide range of industries these releasable and reusable ties are ideal where changes are anticipated. This includes temporary installation and the addition or removal of elements. These releasable cable ties are commonly used to fix stage equipment, for cable management at outdoor events or prototype harnessing work. The extended pawl is simply pushed down with a finger to release the strap.

RELK-Series up to 200 N loop tensile strength az alábbi iparágban használhatóak

Colour Natural (NA)
Identification Plate Position none
Pack Cont. 100pcs.
Package Quantity per Bag
PART DESCRIPTION RELK2R-PA66-NA
Product Family RELK-Series up to 200 N loop tensile strength
Product Group Cable Ties inside serrated
Releasable Closure (Yes/No) Yes
Short Description Releasable Cable Tie 200x4.6 mm, natural
Tie Closure plastic pawl
Type RELK2R.NN3P
Variant Inside Serrated
Bundle ∅ max. 50.0mm
Bundle ∅ min. 5.0mm

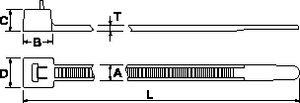

Cable Tie Head Height (Metric) 6.0mm
Cable Tie Head Length (metric) 8.3mm
Cable Tie Head Width (metric) 8mm
Length (L) 200mm
Min.Tensile Strength 200N
Thickness (T) 1.5mm
Width (W) 4.6mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous good No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
Specifications IEC 60092 series
UL OCD link ZODZ2.E64963
UL-File Number E64963
EAN / GTIN 5022660315527
Packaging 1 - Height (m) 0.048m
Packaging 1 - Length (m) 0.282m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00184
Packaging 1 - Weight (kg) 0.17kg
Packaging 1 - Width (m) 0.136m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 5000
Packaging 3 - Type cartridge
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 9.0kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 100000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 201.0kg
Packaging 4 - Width (m) 0.8m
Weight 0.17kg
ETIM 6.0 EC000046
ETIM 7.0 Key EC000046
