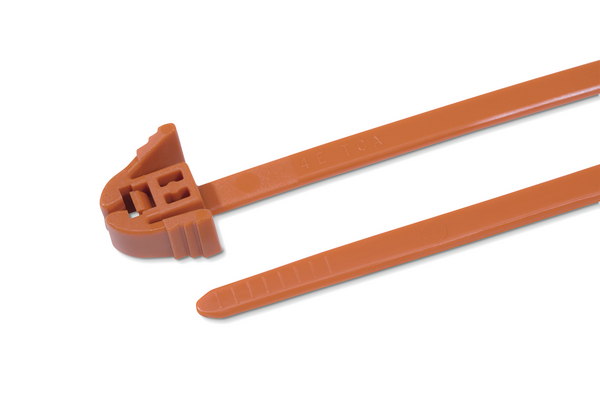

Cable Ties inside serrated with one-hand release mechanism REZ200

REZ-Series, Cikkszám: 115-00132

Tulajdonságok

  • REZ-Series can be released and reused
  • Unique head design for simple and rapid use
  • Quick-release mechanism for one-hand operation
  • Cable tie can be opened even when under tension
  • Can still be released when working with gloves

Tanúsítványok

Felhasználás

Perfect for use in the packaging industry as a bag closure where access to part of the bag content may be needed but the bag need to be re-sealed later. Something that often occurs for instance in the catering or service industry. In addition the cable tie can be opened easily with only two fingers by simply pushing the wings of the unique head.

Colour Orange (OG)
Description Short (BMEcat) (max. 150 characters) Cable tie 200x4.7 mm, PA66, orange
GLOBAL PART DESCRIPTION REZ200-PA66-OG
Identification Plate Position none
Pack Cont. 100pcs.
Package Quantity per Bag
Product Family REZ-Series
Product Group Cable Ties inside serrated with one-hand release mechanism
Releasable Closure (Yes/No) Yes
Tie Closure plastic pawl
Type REZ200.NO3P
Variant Inside Serrated
Bundle ∅ max. 50.0mm
Bundle ∅ min. 16.0mm
Length (L) 200mm
Min.Tensile Strength 135N
Width (W) 4.7mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous good No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
EAN / GTIN 5022660344602
Packaging 1 - Height (m) 0.048m
Packaging 1 - Length (m) 0.282m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00184
Packaging 1 - Weight (kg) 0.176kg
Packaging 1 - Width (m) 0.136m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 6000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 11.362kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 120000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 248.24kg
Packaging 4 - Width (m) 0.8m
Weight 0.176kg
ETIM 6.0 EC000046
