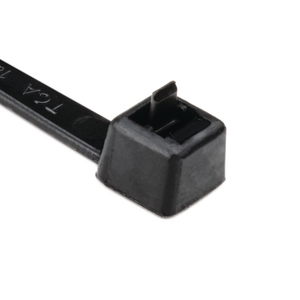

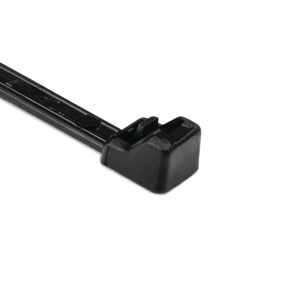

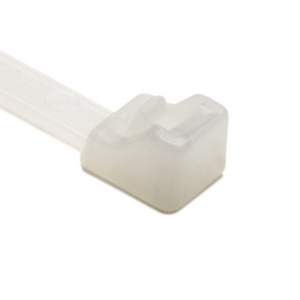

Releasable cable tie PA66 RT-Series RT40R RT40R

RT Series With Extended Pawl, Cikkszám: 115-06219

Tulajdonságok

  • Extended trigger for simple and quick release of ties
  • Multiple grades of PA 6.6 for use indoors, outdoors or at high temperatures

Tanúsítványok

Felhasználás

Used in a wide range of industries these releasable and reusable ties are ideal where temporary installation or the addition or removal of cables is required, for example: theatres, outdoor events and harness work.

RT Series With Extended Pawl az alábbi iparágban használhatóak

  • Defence Industry Defence Industry
Colour Natural (NA)
Description Short (BMEcat) (max. 150 characters) Releasable Cable Tie 215x4 mm, natural
GLOBAL PART DESCRIPTION RT40R-PA66-NA
Identification Plate Position none
Pack Cont. 100
Package Quantity per Bag
Product Family RT Series With Extended Pawl
Product Group Releasable cable tie PA66 RT-Series RT40R
Releasable Closure (Yes/No) Yes
Short Description 8.46", 34 lb., releasable cable tie, natural, 100/bag
Tie Closure plastic pawl
Type RT40R.NN3P
Variant Inside Serrated
Bundle ∅ max. 51.0mm
Bundle ∅ min. 1.5mm
Length (L) 215.0mm
Min.Tensile Strength 180.0N
Thickness (T) 1.2mm
Width (W) 4.0mm
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous good No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
Specifications UL-ZODZ2.E64139
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL-File Number E64139
EAN / GTIN 4031026108407
Packaging 1 - Height (m) 0.016m
Packaging 1 - Length (m) 0.215m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0004
Packaging 1 - Weight (kg) 0.12kg
Packaging 1 - Width (m) 0.115m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 100000
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 141.0kg
Packaging 4 - Width (m) 0.8m
Weight 0.12kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
UNSPSC Key 39121703
