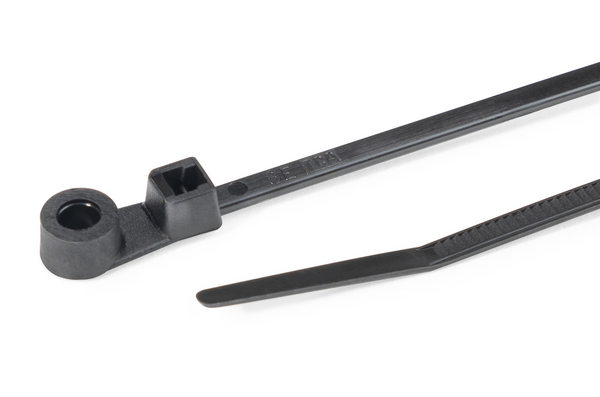

Fixing tie for screw fixation, inside serrated, ⌀1.5-20.0mm, black, 100pcs.
Cikkszám 113-01810
| T18MR-PA66-BK
|
Copied
- One-piece bundling and fixing tie
- Quick and easy installation
Kérje egyedi ajánlatát most
Ajánlatkérés
More products in this product group:
| Application |
The 'T' range of cable ties have a built in mounting hole and once fastened around the cables the bundle can be simply secured to the panel with a screw or bolt. The REL range are releasable and re-usable. The tie is first fitted to the panel and then the cables added. Ideal for fixing cables into 'gaming machines', control panels, or for temporary installations on building sites. |
| Colour | Black (BK) |
| Fixation Method | Fixing hole |
| Identification Plate Position | none |
| Material | Polyamide 6.6 (PA66) |
| Min.Tensile Strength | 80N |
| PART DESCRIPTION | T18MR-PA66-BK |
| Package Content | 100pcs. |
| Package Content packed in | pcs. |
| Product Family | MR Series |
| Product Group | 1-piece fixing ties with mounting head for screws |
| Releasable Closure (Yes/No) | No |
| Short Description | Fixing Tie 110x2.5 black |
| Tie Closure | plastic pawl |
| Type | T18MR |
| Variant | Inside Serrated |
| Weight/Unit | 0.0003kg |
Letöltés
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | CSA -C22.2 no. 62275 |
| UL File link | Link |
| UL Recognized (US and Canada) | Yes |
| UL Type | 11 |
| UL-File Number | E64963 |
|
|
|
| Country of Origin | GB |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 5022660019142 |
| Packaging 1 - Height (m) | 0.025m |
| Packaging 1 - Length (m) | 0.135m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00049275m³ |
| Packaging 1 - Weight (kg) | 0.050001kg |
| Packaging 1 - Width (m) | 0.146m |
| Packaging 3 - Height (m) | 0.192m |
| Packaging 3 - Length (m) | 0.586m |
| Packaging 3 - Qty | 10000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0439m³ |
| Packaging 3 - Weight (kg) | 5.7301kg |
| Packaging 3 - Width (m) | 0.39m |
| Packaging 4 - Height (m) | 1.144m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 200000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.098m³ |
| Packaging 4 - Weight (kg) | 135.6kg |
| Packaging 4 - Width (m) | 0.8m |
