Connector clip for hole (round), black, 500pcs.
Cikkszám 151-01878 | CCFT5-6D16-PA66HIRHS-BK |

Copied

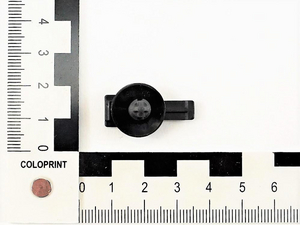

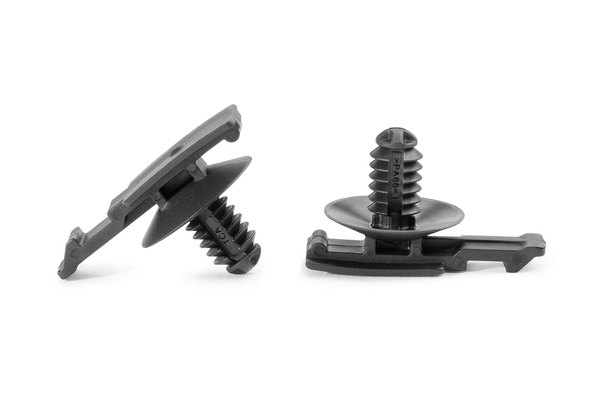

Connector Clip for round holes 5.2 - 5.7 mm or M6.

    • Connector easily installed by simply pushing into place
      Connection can be released (non-destructive)
      Arrowhead locks into place for secure fixing at all times
    Felvétel a figyelőlistára

    Kérje egyedi ajánlatát most

     Ajánlatkérés
    Downloads
    Application The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CCFT5-6D16-PA66HIRHS-BK

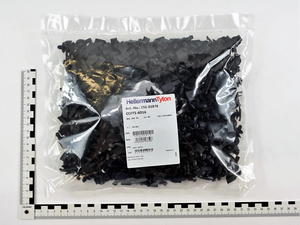

    Package Content 500pcs.
    Package Content packed in bag
    Product Family With Fir Tree
    Product Group Connector Clips for round holes
    Type CCFT5-6D16
    Weight/Unit 0.000788kg
    Height (H) 16.3mm
    Length (L) 27.5mm
    Panel Thickness max. 0.7 - 4.5mm
    Width (W) 16.0mm
    for Hole ⌀ (FH) M6
    for Panel Thickness min - max 0.7 - 4.5 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026576596
    Packaging 1 - Height (m) 0.15m
    Packaging 1 - Length (m) 0.3m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0117m³
    Packaging 1 - Weight (kg) 0.407862kg
    Packaging 1 - Width (m) 0.26m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 15000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 13.05586kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 180000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 177.72kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 31162305
