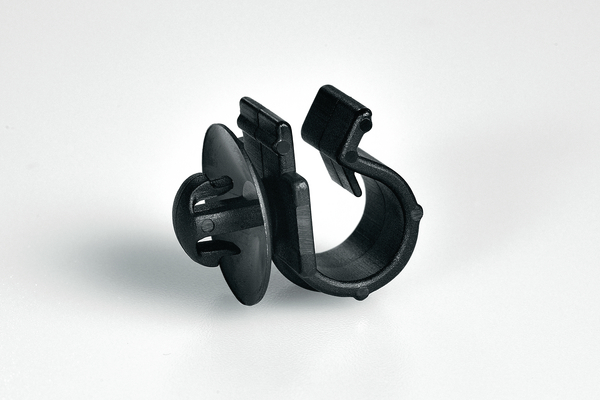

Cable clip for hole (round), Ø6.3 - 6.7 mm, black, 2500pcs.
Cikkszám 151-01844 | KSFT6.5OC7-9-PA66HIRHS-BK Részletek

  • Fixing elements with fir tree or arrow head
  • Simply clip on a wire or hose
  • Clips to be attached into bore hole
  • Bundles can be released at any time

Kérje egyedi ajánlatát most

Application This fixing elements can be used ideally everywhere where space saving work is necessary. In case of maintenance, the tubes and harnesses can be exchanged.
Colour Black (BK)
Fixation Method arrowhead
Key product features for narrow bundling, for narrow space, reusable
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Pack Cont. 2500pcs.

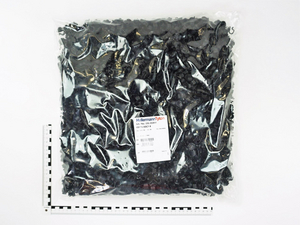

Package Content packed in bag
PART DESCRIPTION KSFT6.5OC7-9-PA66HIRHS-BK
Product Family KSFT6.5OC7-9 with Arrowhead for bundle diameter 7.0 - 9.0 mm
Product Group Fixing elements for tubes and harnesses
Short Description Harness Clip, open, round hole 6.3 - 6.7 mm, arrow head, high impact modified, heat stabilised, black
Attach to Ø 7.0 - 9.0 mm
for Hole ∅ (FH) 6.3 - 6.7 mm
for Panel Thickness min - max 2.3 - 2.7 mm

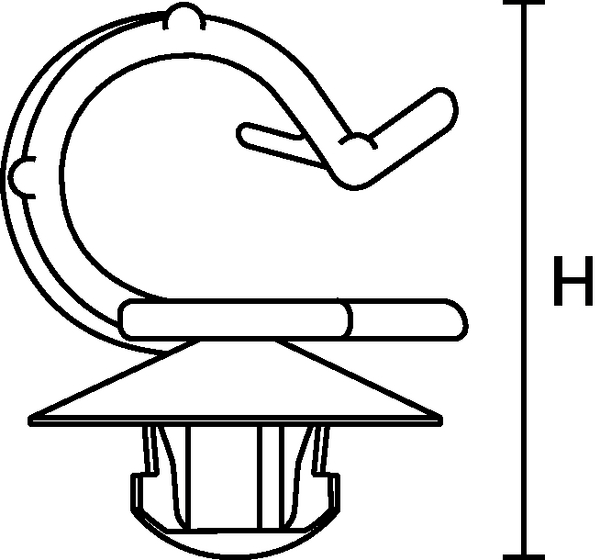

Height (H) 21.6mm
Weight/Unit 0.00105kg
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +105 °C
Specifications
Country of Origin PL
Customs Number 39269097
GTIN-13 / EAN 4031026573786
Packaging 1 - Height (m) 0.095m
Packaging 1 - Length (m) 0.47m
Packaging 1 - Qty 2500
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.02433
Packaging 1 - Weight (kg) 2.668597kg
Packaging 1 - Width (m) 0.545m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 10000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 11.494388kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 120000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 158.952kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
