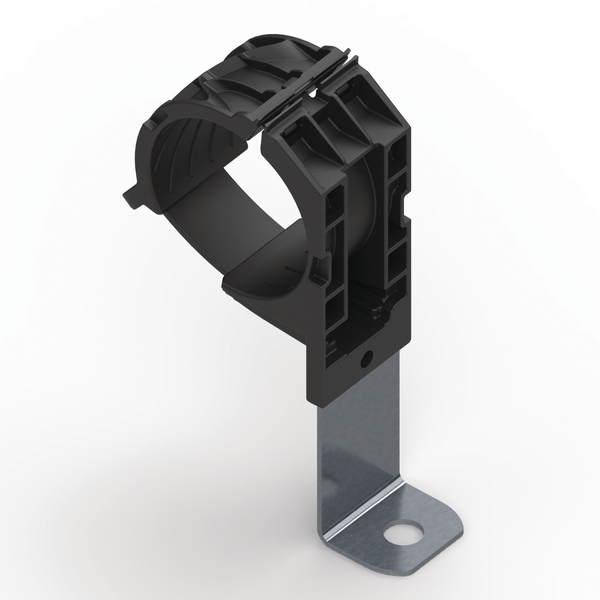

P-clamp long, Dmin=36.0mm, Dmax=51.0mm, ⌀8.4 mm, 90°, black, 140pcs.
Cikkszám 151-03144
| RCD90LM8SS-PA666V0/SS304-BK
|
Copied
- Ratchet P-Clamp D-Series for bundle diameters from 35.1 mm to 51.0 mm
- One-piece ratchet closure design allows for easy installation during pre- or final assembly
- Multiple configurations handle a wide range of diameters and applications, reducing part inventory
- Clamp interior is designed to guide and center bundle to reduce pinching
- Easy release feature allows for quick adjustments and maintenance
- Impact modified, heat and UV stabilized PA66 provides long-term durability, in- and outdoors
- Steel mounting plate tolerates high torque mounting and is treated to resist chemicals and salt spray
mutasson többet
Mutasson kevesebbet
Ajánlatkérés
More products in this product group:
| Application | The Ratchet P-Clamp family offers versatility when managing wires, cables and hoses. The robust design and durable materials make it ideal for heavy duty applications, both in- and outdoors. The one-piece adjustable clamp can be closed by hand to the desired diameter. The release feature provides easy and nondestructive removal of cables simply by using a flat-head screwdriver. This nondestructive release allows the clamp to be reused without removing or replacing any bolts or screws. The Ratchet P-Clamp is offered in four sizes and multiple mounting configurations. |
| Colour | Black (BK) |
| Fixation Method | Screw Mounting |
| Key product features | vibration absorbing, reusable, removable, for multiple routing |
| Material | Polyamide 6.6/6, V0 (PA666V0), Stainless Steel (SS304) |
| Min.Tensile Strength | 445N |
| PART DESCRIPTION | RCD90LM8SS-PA666V0/SS304-BK |
| Package Content | 140pcs. |
| Package Content packed in | pack |
| Product Family | For bundle diameters from 36.0 mm to 51.0 mm, D-Series |
| Product Group | Ratchet P-Clamp |
| Type | RCD90LM8SS |
| UV-Stabilised | Yes |
| Variant | Long |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 V0 |
| Halogen-free | Yes |
| Limited Fire Hazard | Yes |
| Operating Temperature | -40 °C to +120 °C |
| ROHS compliant | Yes |
| Reusable (Yes/No) | Yes |
| Specifications |
|
| Specifications | ASTM 1354, ASTM E 162, ASTM E 662, EN 45545-2 |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
