Cable grommet, black, 1000pcs.
Cikkszám 634-31250 | H125-PVC-BK Részletek

  • Provides excellent strain relieve
  • Flexible and easy to apply
  • High resistance to chemicals and environmental influences

Kérje egyedi ajánlatát most

Application Straining relief grommets are used as protection for cables and wires from pulling. They are also used for bend protection in casing apertures.
Cable ∅ max 4.0mm
Cable ∅ min 3.5mm
Colour Black (BK)
Material Flexible Polyvinyl Chloride, cadmium free (PVC)
Pack Cont. 1000pcs.
Package Content packed in pcs.

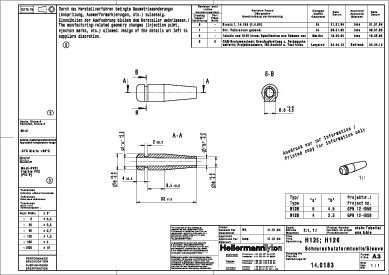

PART DESCRIPTION H125-PVC-BK
Product Family H125
Product Group Strain Protection Grommets
Short Description Strain protection grommets black, for cable diameter: 3.5 - 4.0
Variant Open
Diameter (D) 4.0mm
Length (L) 32.0mm
Outside Ø (OD) 9.0mm
Outside ∅ (OD2) 6.0mm
Shore Hardness A 63±5
Weight/Unit 0.001588kg
∅ (D2) 3.5mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Hazardous Goods No
Nato number 5325-12-169-6216
Operating Temperature -30 °C to +60 °C
Specifications
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026186771
Packaging 1 - Height (m) 0.065m
Packaging 1 - Length (m) 0.43m
Packaging 1 - Qty 1000
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.01062
Packaging 1 - Weight (kg) 1.616kg
Packaging 1 - Width (m) 0.38m
ETIM 7.0 Key EC000879
ETIM 8.0 Key EC000879
ETIM 9.0 Key EC000879
