Cable grommet, natural, 2000pcs.
Cikkszám 631-08259 | HV4825-PVC-NA Részletek

  • Protects effectively against spraying water
  • Flexible and easy to apply
  • High resistance to chemicals and environmental influences

Kérje egyedi ajánlatát most

Application The protective push-on caps and elbow grommets are specially constructed to insulate and protect flat pin bushings. They are used in all areas of automotive electronics and connection technology.
Cable ∅ max 4.0mm
Cable ∅ min 2.0mm
Colour Natural (NA)
Material Polyvinylchloride (PVC)
Pack Cont. 2000pcs.
Package Content packed in pcs.

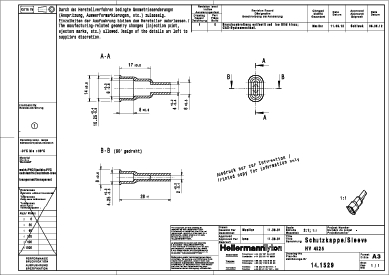

PART DESCRIPTION HV4825-PVC-NA
Product Family HV4825
Product Group For blade receptables and terminals
Short Description Push-on Caps natural
Variant Open
Diameter (D) 10.25mm
Length (L) 28.0mm
Length (L2) 17.0mm
Length (L3) 8.0mm
Outside Ø (OD) 14.0mm
Outside ∅ (OD2) 6.0mm
Shore Hardness A 70±5
Weight/Unit 0.00086kg
∅ (D2) 4.0mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Hazardous Goods No
Nato number 5975-12-345-3965
Operating Temperature -30 °C to +60 °C
Specifications
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026185866
Packaging 1 - Height (m) 0.035m
Packaging 1 - Length (m) 0.35m
Packaging 1 - Qty 2000
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.0049
Packaging 1 - Weight (kg) 1.720001kg
Packaging 1 - Width (m) 0.4m
ETIM 7.0 Key EC000879
ETIM 8.0 Key EC000879
ETIM 9.0 Key EC000879
