Fittings for spiral-reinforced PVC conduits : PSR16-S-M16

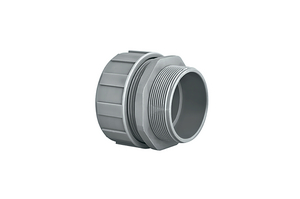

Straight fitting grey with External Thread ø16mm M16Cikkszám: 166-40702

PSR-S Straight.

Tulajdonságok

  • High pull-off strength
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus
  • Metric threads supplied with locknuts
  • Fits both PSR and PSRSC conduits

Tanúsítványok

Felhasználás

Straight PA66 fitting, fixed external thread.
Fulfils IP65 with PSR conduits.
Fulfils IP66 and IP67 with PSRSC conduits.

Colour Grey (GY)
Pack Cont. 10pcs.
Package Quantity per bag

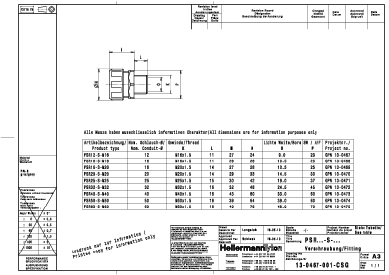

PART DESCRIPTION PSR16-S-M16-PA66-GY
Product Family PSR-S Straight fitting
Product Group Fittings for spiral-reinforced PVC conduits
Short Description Straight fitting grey with External Thread ø16mm M16
Type of connection Snap-connection
Variant Straight
Height (H) 28mm
Length (L) 40mm
Lowest inner diameter 11mm
Min. Bore Size (B) 10.5mm
Nominal ∅ 16mm
Nominal ∅ 0.63"
Outside ∅ max (OD max.) 28mm
Thread Length (TL) 11mm
Thread Size M16
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Halogenfree Yes
Hazardous good No
IP-Rating IP65 with PSR conduits, IP66 with PSRSC conduits, IP67 with PSRSC conduits
Material Polyamide 6.6 (PA66)
Material of fitting ETIM Polyamide (PA)
Operating Temperature - °C -50 °C to +135 °C
Specifications
Specifications ANSI/UL 1696, CSA-C22.2 No.227.3
UL OCD link Link
UL-File Number E325250
GTIN-13 / EAN 4031026410685
Packaging 1 - Height (m) 0.035m
Packaging 1 - Length (m) 0.2m
Packaging 1 - Qty 10
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00091
Packaging 1 - Weight (kg) 0.100001kg
Packaging 1 - Width (m) 0.13m
ETIM 6.0 EC001178
ETIM 7.0 Key EC001178
