Identification tags for cable bundle in ladder style TAGPU 75x25 mm grey 500 pcs./reel
Cikkszám 556-80571
| TAGPU25X75-4-PUR-GY
|
Részletek
- UV-stabilised
- For larger cables and wires, bundles
- Robust and flexible material
- Thermal transfer or laser beam printable
- Available in various colours
- Halogen Free
- Good mechanical strength and highly flexible
- Delivery in convenient storage boxes
Kérje egyedi ajánlatát most
Ajánlatkérés
More products in this product group:

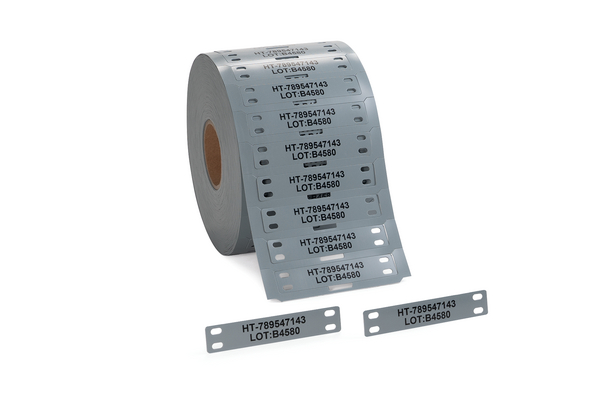

| Application | TAGPU is a specially designed cable marker for identifying larger wire and cable bundles, where a permanently legible and UV resistant marking is required. The cable markers consist of a robust and flexible polyurethane material and are especially suited for harsh environments. They are supplied pre-cut and have been formatted into a convenient "ladder" system. The markers are applied to cable and harness assemblies with cable ties, and are also suitable for retrofit purposes. The material has been conditioned for printing on both thermal transfer and laser beam printers. Simply print and press out the required TAGPU and apply with cable ties. Print with HellermannTyton's premium range of thermal printers and ribbons or a laser beam marking device. |
| Application Tool | TT431, TT4030 |
| Colour | Grey (GY) |
| Density | 1.27 g/cm³, 23 °C (DIN EN ISO 2811-2) |
| Material | Polyurethane (PUR) |
| Pack Cont. | 500pcs. |
| Package Content packed in | roll |
| PART DESCRIPTION | TAGPU25X75-4-PUR-GY |
| Printable | Yes |
| Product Family | TAGPU – UV-stabilised Tiptags |
| Product Group | Identification tags for cable bundle, "Ladder Style", thermal transfer |
| Short Description | Identification tags for cable bundle in ladder style TAGPU 75x25 mm grey 500 pcs./reel |
| Variant | Roller form |
| With inner glue (Yes/No) | No |
Letöltés
| Elongation at break | 400% |
| Elongation at break test method | DIN 53504 |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V0 (3 mm) |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -25 °C to +105 °C |
| Oxygen index | 24% |
| Oxygen index test method | ISO 4589 |
| Recommended Ribbon Type | TTRHT, TTRC+ |
| Reel Variant | ladder-style |
| Shelf Life | 5 years |
| Specifications |
|
| Specifications | MIL-STD-202G Method 215K, SAE - AS81531 |
| Tensile Strength | 30MPa |
| Test Method Tensile Strength | DIN 53504 |
| UV-Stabilised | Yes |
|
|
|
| Country of Origin | DK |
| Customs Number | 39209990 |
| GTIN-13 / EAN | 4031026626697 |
| Markers per row | 1 |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | reel |
| Packaging 1 - Weight (kg) | 0.85kg |
| Packaging 2 - Height (m) | 0.098m |
| Packaging 2 - Length (m) | 0.184m |
| Packaging 2 - Qty | 500 |
| Packaging 2 - Type | carton |
| Packaging 2 - Volume (m³) | 0.0032m³ |
| Packaging 2 - Weight (kg) | 0.968kg |
| Packaging 2 - Width (m) | 0.178m |
