Wiring duct, narrow fingers, 100x40mm, L=2m, grey, 16m
Cikkszám 184-10108
| HTWD-PN-100X40-PVC-GY
|
Copied
- Narrow slots suitable for small-diameter wires
- Smooth, burr-free edges protect installers from injury and wires from damage
- Fingers can be removed with no sharp edges at pre-notched snap-off points
- Further pre-notched snap-off point at base of sidewall allow cutting out and removing sections of sidewall with no sharp edges
- Raised mounting points for easily and securely fastening wire retainers and other accessores prior to cabling
- Wire retainers and accessories leave no protruding parts below surface of duct
- Duct covers are easy to mount and remove, yet hold securely even in a vertical position and under vibration
- Cover is flush with side of duct, allowing for tight, contiguous placement of ducts
- Additional retainer nub on fingers on ducts height 80 and above to prevent cables from slipping

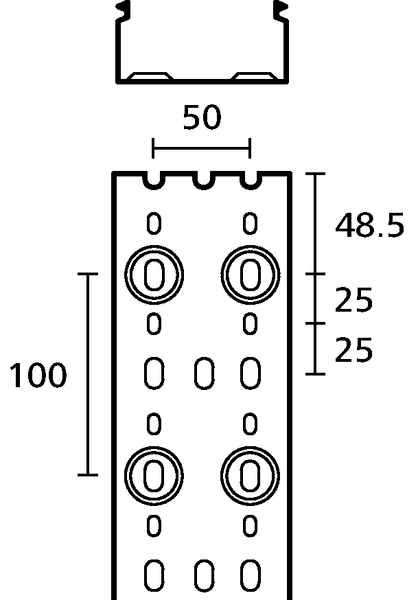

- Base perforation according to DIN EN 50085
mutasson többet
Mutasson kevesebbet
Ajánlatkérés
More products in this product group:
| Application | HelaDuct HTWD-PN wiring ducts are used to route and protect wires in control panels and switching systems. |
| Colour | Grey (GY) |
| Current leak stable Yes/No | Yes |
| Fixation Method | Screw Mounting |
| Material | Polyvinylchloride (PVC) |
| PART DESCRIPTION | HTWD-PN-100X40-PVC-GY |
| Package Content | 16m |
| Package Content packed in | meter |
| Product Family | HelaDuct HTWD-PN for small-diameter wires (metric sizes) |
| Product Group | Rigid PVC wiring ducts |
| Short Description | Wiring duct 100x40 mm, 2000 mm, PVC, grey |
| Type | HTWD-PN-100X40 |
| Type of side wall | Slotted |
| Weight/Unit | 0.612kg |
| ELV compliant (Article 4 - 2) | Yes |
| Flammability | UL 94 V0 |
| Hazardous Goods | No |
| Operating Temperature | -5 °C to +65 °C |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Specifications |
|
| Specifications | ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B |
| UL File link | Link |
| UL Recognized (US and Canada) | Yes |
| UL-File Number | E357929 |
|
|
|
| Country of Origin | IT |
| Customs Number | 39259020 |
| GTIN-13 / EAN | 4031026567488 |
| Packaging 3 - Height (m) | 0.117m |
| Packaging 3 - Length (m) | 2.03m |
| Packaging 3 - Qty | 16 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.0572m³ |
| Packaging 3 - Weight (kg) | 10.592kg |
| Packaging 3 - Width (m) | 0.241m |
| Packaging 4 - Height (m) | 1.08m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 384 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.037m³ |
| Packaging 4 - Weight (kg) | 276.208kg |
| Packaging 4 - Width (m) | 0.8m |
