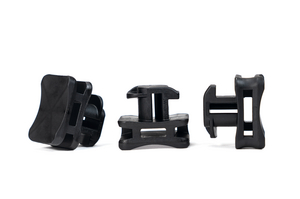

Fixing Element for Aluminium Frames : ACFM2W10PT6

The ACFM2W10PT6 is specially designed for the Bosch Rexroth profile with a T-slot width of 10 mm and external dimensions of 45 mm, Številka proizvoda: 151-02858

Lastnosti

  • Easy to assemble (quarter turn) without the need for a tool
  • Tight fit after assembly
  • Fixing with 24er plug nut possible
  • Cable fastening longitudinally and transversely to the profile possible
  • Centering of the bundled cables due to the deepened shape of the surface

Certifikati in standardi

Uporaba

The ACFM2W10PT6 is specially designed for the Bosch Rexroth profile with a T-slot width of 10 mm and external dimensions of 45 mm. The fact that no mounting hole is necessary, the installation and handling of the ACFM is very simple. The Aluminium frame mount is firmly fixed at the favoured place with a quarter turn and then fits firmly. Can be easily loosened and repositioned at any time.

For Bosch Rexroth 45.0 mm frame so primerne za uporabo v naslednjih industrijskih panogah

Cable Ties T50 T80 T120 X80 X120 Q50 Q120
Colour Black (BK)
Features and Benefits Simple twist-lock installation makes them easy to install and remove. Can be mounted and dismounted several times. The bundled goods are centered by the rounded shape of the bundle holder. Useable for cable ties from T50 - T120. The bundled goods can be guided longitudinally as well as transversely to the profile.
Fixation Method Profile rail
For Ties T50 T80 T120 X80 X120 Q50 Q120
Pack Cont. 500pcs.
Package Quantity per Bag
PART DESCRIPTION ACFM2W10PT6-PA66/6HIRHS-BK
Product Family For Bosch Rexroth 45.0 mm frame
Product Group Fixing Element for Aluminium Frames
Short Description The ACFM2W10PT6 is specially designed for the Bosch Rexroth profile with a T-slot width of 10 mm and external dimensions of 45 mm
Type ACFM2W10PT6_PA66+PA6HIRHS_BK
for Panel Thickness min - max 6 - 6 mm
Height (H) 9.3mm
Height (H2) 19.3mm
Length (L) 17.5mm
Panel Thickness max. 6.0mm
Strap Width max. (G) 8.0mm
Width (W) 22.5mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous good No
Material Polyamide 6.6/6, high impact modified, heat stabilised (PA66/6HIRHS)
Operating Temperature - °C -40 °C to +105 °C, (+105 °C for 500 h)
Specifications
EAN / GTIN 4031026620299
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01845
Packaging 1 - Weight (kg) 1.466815kg
Packaging 1 - Width (m) 0.41m
Packaging 3 - Height (m) 0.184m
Packaging 3 - Length (m) 0.58m
Packaging 3 - Qty 3000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0406
Packaging 3 - Weight (kg) 9.40089kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 72000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 246.648kg
Packaging 4 - Width (m) 0.8m
Weight 1.445kg
ETIM 6.0 EC000449
ETIM 7.0 Key EC000449
