Self Adhesive, Screw Fixing Cable Tie Mounts : MB4

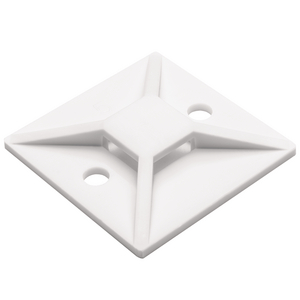

Screwable Fixing Mount 28x28 natural, Številka proizvoda: 151-28479

Lastnosti

  • Screwable or self-adhesive versions
  • Simple to install with a screw or bolt
  • Excellent security, particularly in areas of high vibration
  • Maximum surface area with adhesive to achieve high pull-off force
  • 4-way entry for cable tie for quicker and more flexible installation

Certifikati in standardi

Uporaba

Designed specifically for holding heavier cable bundles these mounting bases can be used in many industries from Agriculture to Truck manufacture, they offer a very secure fixing and can be used with a wide variety of heavy duty cable ties up to 9mm wide.

MB-Series square design, screwable so primerne za uporabo v naslednjih industrijskih panogah

Colour White (WH)
Fixation Method Screw Mounting and Rivet
Pack Cont. 100pcs.
Package Quantity per pcs.
PART DESCRIPTION MB4-PA66-WH
Product Family MB-Series square design, screwable
Product Group Self Adhesive, Screw Fixing Cable Tie Mounts
Short Description Screwable Fixing Mount 28x28 natural
Type MB4AM.NN3P

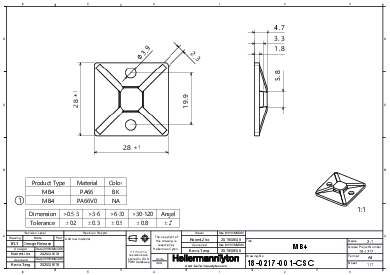

Fixing Hole Centres (F) 20.0mm
for Hole ∅ (FH) 4.0 mm
Height (H) 4.7mm
Length (L) 28.0mm
Strap Width max. (G) 5.4mm
Width (W) 28.0mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous good No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
EAN / GTIN 5022660329449
Packaging 1 - Height (m) 0.025m
Packaging 1 - Length (m) 0.203m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00077
Packaging 1 - Weight (kg) 0.18kg
Packaging 1 - Width (m) 0.152m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 5000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 9.802kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 100000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 217.04kg
Packaging 4 - Width (m) 0.8m
Weight 0.18kg
ETIM 6.0 EC000449
ETIM 7.0 Key EC000449
