Mounting Plates for Screw Fixing : MSMP5/10

Mounting Plates for M5 Screw Fixing, Številka proizvoda: 151-25519

Lastnosti

  • Allow multiple cables to run in parallel
  • Simple to fix with two screws
  • Cables are fixed by using a cable tie through any combination of the available slots

Certifikati in standardi

Uporaba

Many applications require each cable run to be firmly held in place but to be held separately from adjacent cable runs (example - control cabinets, machinery and military systems). The MP series of mounts can achieve this.

MSMP-Series so primerne za uporabo v naslednjih industrijskih panogah

Colour Natural (NA)
Fixation Method Screw Mounting and Rivet
No. of bundles 5
Pack Cont. 100pcs.
Package Quantity per Bag
PART DESCRIPTION MSMP5/10-PA66-NA
Product Family MSMP-Series
Product Group Mounting Plates for Screw Fixing
Short Description Mounting Plates for M5 Screw Fixing
Type MSMP5.NN3P

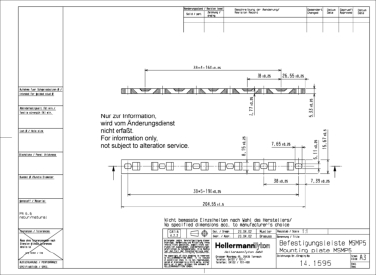

Fixing Hole Centres (F) 38.0mm
Fixing Hole Centres (F) (imperial) 1.5"
for Hole ∅ (FH) 5.1 mm
Height (H) 5.30mm
Hole Size (HS) 7.7mm
Length (L) 204.47mm
Strap Width max. (G) 7.6mm
Strap Width max. (G) (imperial) 0.3"
Width (W) 15.8mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous good No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
Specifications ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL-File Number E64139
EAN / GTIN 4031026191102
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.33m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00257
Packaging 1 - Weight (kg) 1.4kg
Packaging 1 - Width (m) 0.26m
Packaging 3 - Height (m) 0.215m
Packaging 3 - Length (m) 0.512m
Packaging 3 - Qty 1000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0347
Packaging 3 - Weight (kg) 14.61kg
Packaging 3 - Width (m) 0.315m
Packaging 4 - Height (m) 1.22m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 20000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.171
Packaging 4 - Weight (kg) 313.2kg
Packaging 4 - Width (m) 0.8m
Weight 1.4kg
ETIM 6.0 EC000449
ETIM 7.0 Key EC000449
UNSPSC Key 39121717
