Cable Tie Mounts with high performance adhesive : QM30APT-I

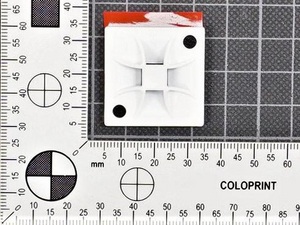

Adhesive Cable Tie Mount 30x30 mm natural, Številka proizvoda: 151-01593

Lastnosti

  • Q-mounts with homogeneous system of acrylic adhesive
  • Perfect for combination with Q-ties
  • Very good initial adhesion, increases with time
  • Adhesive with high cohesive strength combined with good weathering resistance
  • Innovative fixing solution for high and low energy surfaces
  • Q-Mount base locks Q-tie in vertical position, means the hands are free to apply cables

Certifikati in standardi

Uporaba

Q-mounts are ideally suited for holding our innovative Q-ties in place. They would perfectly fit to all applications where a reliable and durable fixation is required. With its SolidTack adhesive Q-mounts offer an innovative fixing solution especially for low energy surfaces or if drilling a hole is not possible. Suitable for a wide range of applications on varnished or plastic or metal surfaces in many areas like electrical cabinet, railway, aerospace, automotive and agriculture machinery.

SolidTack-Series QM so primerne za uporabo v naslednjih industrijskih panogah

Colour Natural (NA)
Fixation Method Screw Mounting and Adhesive

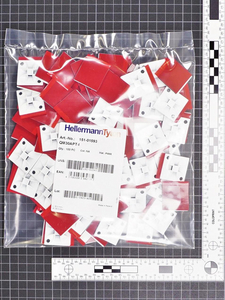

Pack Cont. 100pcs.
Package Quantity per Bag
PART DESCRIPTION QM30APT-I-PA66-NA
Product Family SolidTack-Series QM
Product Group Cable Tie Mounts with high performance adhesive
Short Description Adhesive Cable Tie Mount 30x30 mm natural
Type QM30 APT-I PA66 NA100
Fixing Hole Centres (F) 21.0mm
for Hole ∅ (FH) 4.1 mm
Height (H) 4.5mm
Length (L) 30.0mm
Strap Width max. (G) 5.1mm
Width (W) 30.0mm
Adhesive Acrylate with base of acrylic foam
Adhesive Operating Temperature -35 °C to +120 °C
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2 (excluding adhesive)
Halogenfree Yes
Hazardous good No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
EAN / GTIN 4031026562735
Packaging 1 - Height (m) 0.1m
Packaging 1 - Length (m) 0.22m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00528
Packaging 1 - Weight (kg) 0.21228kg
Packaging 1 - Width (m) 0.24m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 5000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 11.264kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.165m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 100000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.118
Packaging 4 - Weight (kg) 246.3kg
Packaging 4 - Width (m) 0.8m
Weight 0.2033kg
ETIM 6.0 EC000449
ETIM 7.0 Key EC000449
