Self Adhesive / Screw Fixing Cable Tie Mounts : TY3G1S

Screw Fixing Cable Tie Mount self adhesive 20x14 UV-black, Številka proizvoda: 151-11310

Lastnosti

  • Screwable or self-adhesive versions
  • Concave design to support larger diameter cables and bundles
  • 2-way mounting base for safe guiding of cables and conduits
  • Suitable for applications with minimal space
  • Mounted before cable installation
  • Usable with standard cable ties for reduced inventory

Certifikati in standardi

Uporaba

Where speed, simplicity, and a firm fixing base are required these self adhesive clips are ideal. Particularly suitable for use in control cabinets, telecoms equipment or domestic appliances where the use of holes, screws, or nuts and bolts is impractical or undesirable.

TY-Series Rectangle Design, self adhesive, screwable so primerne za uporabo v naslednjih industrijskih panogah

Colour Black (BK)
Fixation Method Screw Mounting and Adhesive
Pack Cont. 100pcs.
Package Quantity per pcs.
PART DESCRIPTION TY3G1S-PA66W-BK
Product Family TY-Series Rectangle Design, self adhesive, screwable
Product Group Self Adhesive / Screw Fixing Cable Tie Mounts
Short Description Screw Fixing Cable Tie Mount self adhesive 20x14 UV-black
Type TY3G1S.WB3P

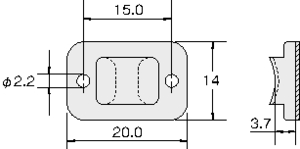

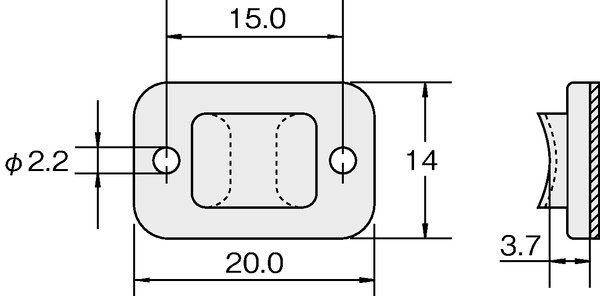

Fixing Hole Centres (F) 15.0mm
for Hole ∅ (FH) 2.2 mm

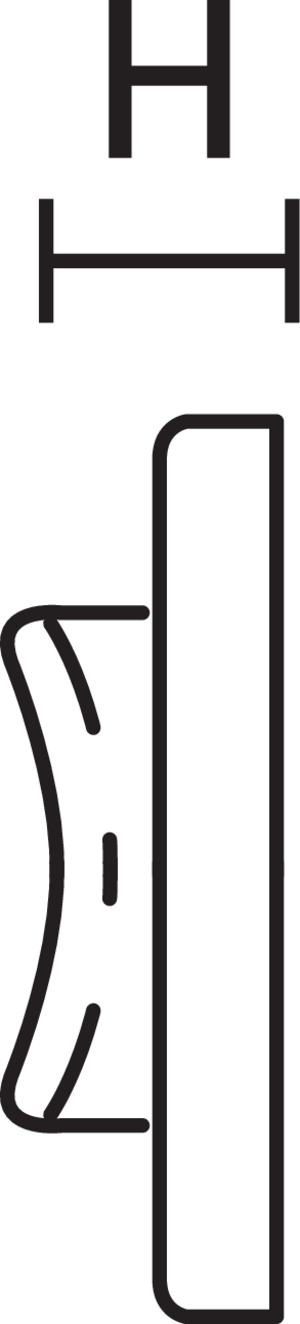

Height (H) 3.7mm
Length (L) 20.0mm
Strap Width max. (G) 4.0mm
Thickness of Adhesive (TA) nom. 0.8
Width (W) 14.0mm
Adhesive Acrylate with base of polyurethane foam
Adhesive Operating Temperature to +105 °C
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2 (excluding adhesive)
Halogenfree Yes
Hazardous good No
Material Polyamide 6.6, UV-resistant (PA66W)
Operating Temperature - °C -40 °C to +85 °C
Specifications
EAN / GTIN 4031026122144
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.12m
Packaging 1 - Qty 100

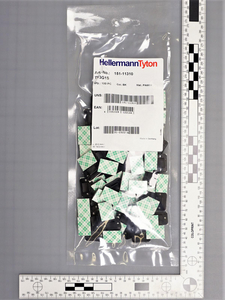

Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00127
Packaging 1 - Weight (kg) 0.09551kg
Packaging 1 - Width (m) 0.265m
Packaging 3 - Height (m) 0.17m
Packaging 3 - Length (m) 0.56m
Packaging 3 - Qty 5000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0171
Packaging 3 - Weight (kg) 4.9955kg
Packaging 3 - Width (m) 0.18m
Packaging 4 - Height (m) 1.171m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 240000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.124
Packaging 4 - Weight (kg) 261.96kg
Packaging 4 - Width (m) 0.8m
Weight 0.09kg
ETIM 6.0 EC000449
ETIM 7.0 Key EC000449
