For hard, smooth surface applications, we recommend the use of our LFPC protective channels.

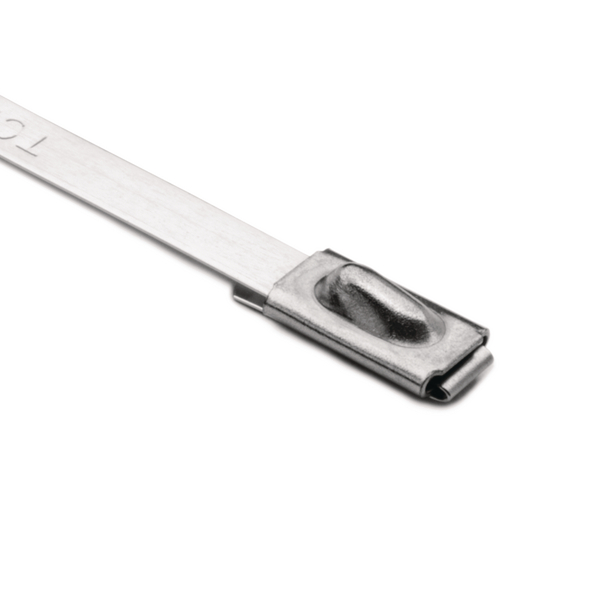

Stainless steel cable tie, ball bearing lock, 127.0x4.6mm, ⌀12.0-25.0mm, metal, 100pcs.
Številka proizvoda 111-93059
| MBT5S-SS316L-ML
|
Copied
- MBT cable ties made from stainless steel 316L
- Non-releasable locking feature
- Corrosion resistant
- Weather resistant
- Outstanding chemical resistance
- High temperature resistant
- Non-burning
Zahtevajte svojo individualno ponudbo zdaj
Zahtevajte ponudbo
More products in this product group:
| Application | Metal ties are predestined for all areas with requirements for high holding force, reliability and fire resistance. The MBT range of stainless steel cable ties can be used in chemical industry and on oil platform as well as in mass transit, shipbuilding and mining industry. MBT ties are also suitable for machine building, apparatus construction and in the outside area of radio technology. Additionally MBT ties are a good solution to fix lighting in theatres and exhibition halls. |
| Colour | Metal (ML) |
| Identification Plate Position | none |
| Internet Customer Notice | For hard, smooth surface applications, we recommend the use of our LFPC protective channels. |
| Key product features | vibration absorbing |
| Material | Stainless Steel (SS316L) |
| Min.Tensile Strength | 900N |
| PART DESCRIPTION | MBT5S-SS316L-ML |
| Package Content | 100pcs. |
| Package Content packed in | pack |
| Product Family | MBT-Series, stainless steel 316L |
| Product Group | Cable ties with ball-lock |
| Releasable Closure (Yes/No) | No |
| Short Description | Metal Cable Tie with Ball-Lock 127x4.6 mm |
| Tie Closure | ball bearing lock |
| Type | MBT5S |
| UV-Stabilised | Yes |
| Variant | Not Serrated |
| Weight/Unit | 0.0021kg |
Prenos
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | non-burning |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Limited Fire Hazard | Yes |
| Operating Temperature | -80 °C to +538 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | CSA -C22.2 no. 62275, IEC 60092, IEC 62275, IEC 62275:2022, UL 62275 |
| UL File link | Link |
| UL Listed (US and Canada) | Yes |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| UL-File Number | E547605 |
|
|
|
| Country of Origin | GB |
| Customs Number | 73269098 |
| GTIN-13 / EAN | 5022660020605 |
| Packaging 1 - Height (m) | 0.025m |
| Packaging 1 - Length (m) | 0.153m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0003366m³ |
| Packaging 1 - Weight (kg) | 0.210001kg |
| Packaging 1 - Width (m) | 0.088m |
| Packaging 3 - Height (m) | 0.192m |
| Packaging 3 - Length (m) | 0.586m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0439m³ |
| Packaging 3 - Weight (kg) | 11.23005kg |
| Packaging 3 - Width (m) | 0.39m |
| Packaging 4 - Height (m) | 1.144m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 100000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.098m³ |
| Packaging 4 - Weight (kg) | 245.6kg |
| Packaging 4 - Width (m) | 0.8m |
