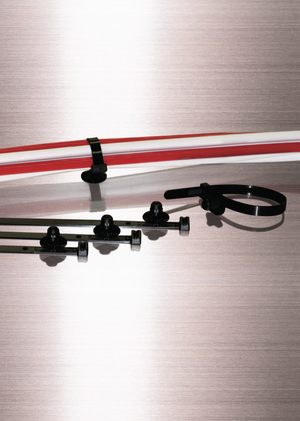

Fixing tie for hole (round), Ø1-20mm, white, 100pcs.
Številka proizvoda 126-00196 | LRT18RWPM4.8-PA66V0-WH Podrobnosti

  • It is possible to fix on thin panels (0.4-2.0mm).

Zahtevajte svojo individualno ponudbo zdaj

Application Suitable for use in devices where space saving is required, such as lighting equipment, small home appliances, small electronic devices, and vending machines. Suitable for use in devices where it is important that the fixing ties do not catch on anything after the harness has been mounted, such as office automation equipment and cooking appliances.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i
Colour White (WH)
Fixation Method arrowhead
Identification Plate Position none
Key product features releasable
Material Polyamide 6.6 V0 (PA66V0)
Pack Cont. 100pcs.
Package Content packed in bag
PART DESCRIPTION LRT18RWPM4.8-PA66V0-WH
Product Family for round holes, releasable
Product Group 1-piece fixing ties with arrowhead, with wings
Releasable Closure (Yes/No) Yes
Bundle Diameter max (metric) 20mm
Bundle ∅ 1-20mm
Bundle ∅ min. 1mm
for Hole ∅ (FH) 4.7 - 4.9 mm
for Panel Thickness min - max 0.4 - 2 mm
Height (H2) 5.5mm
Length (L) 110mm
Min.Tensile Strength 100N
Thickness (T) 1.1
Width (W) 2.5mm
Width (W3) 13mm
Flammability UL 94 V0
Operating Temperature -40 °C to +105 °C
Specifications
Specifications ANSI/UL 1565, ANSI/UL 62275
UL OCD link Link
UL Recognized (US and Canada) Yes
UL-File Number E64962
Country of Origin JP
GTIN-13 / EAN 4944387107098
Packaging 3 - Weight (kg) 6.93kg
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
