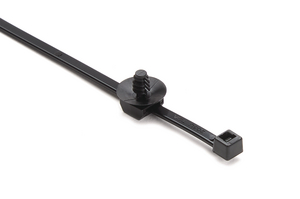

Fixing tie for hole (round), inside serrated, Ø20.0mm, black, 100pcs.
Številka proizvoda 156-00339 | T18RFT4-PA66HSUV-BK Podrobnosti

  • Pre-assembled 2-piece fixing tie with fir tree foot part
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
prikaži več izdelkov

Zahtevajte svojo individualno ponudbo zdaj

Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i
Colour Black (BK)
Description These two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables. The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, whilst the 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt.
Fixation Method Fir Tree
Identification Plate Position none
Material Polyamide 6.6, heat and UV-stabilised (PA66HSUV)
Pack Cont. 100pcs.
Package Content packed in bag
PART DESCRIPTION T18RFT4-PA66HSUV-BK
Product Family Fir tree parts FT4
Product Group 2-Pieces Fixing Ties with Fir Tree, with Disc, for Round Holes
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Variant Inside Serrated
Bundle Diameter max (metric) 20.0mm
Bundle ∅ 20.0mm
Disc ∅ 13mm
for Hole ∅ (FH) 3.3 - 4.0 mm, M4
for Panel Thickness min - max 1 - 3 mm
Hole Depth 5.6mm
Length (L) 100.0mm
Length (L2) 11.8mm
Min.Tensile Strength 80N
Thickness (T) 1.1mm
Weight/Unit 0.0007kg
Width (W) 2.5mm
Width (W3) 0mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +110 °C
Specifications
Country of Origin JP
Customs Number 39269097
GTIN-13 / EAN 4944387951080
Packaging 1 - Qty 100
Packaging 1 - Type bag
Packaging 1 - Weight (kg) 0.070001kg
Packaging 3 - Height (m) 0.315m
Packaging 3 - Length (m) 0.505m
Packaging 3 - Qty 5000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0589
Packaging 3 - Weight (kg) 4.03005kg
Packaging 3 - Width (m) 0.37m
Packaging 4 - Height (m) 1.089m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 60000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.045
Packaging 4 - Weight (kg) 69.36kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121717
