02/03/2024

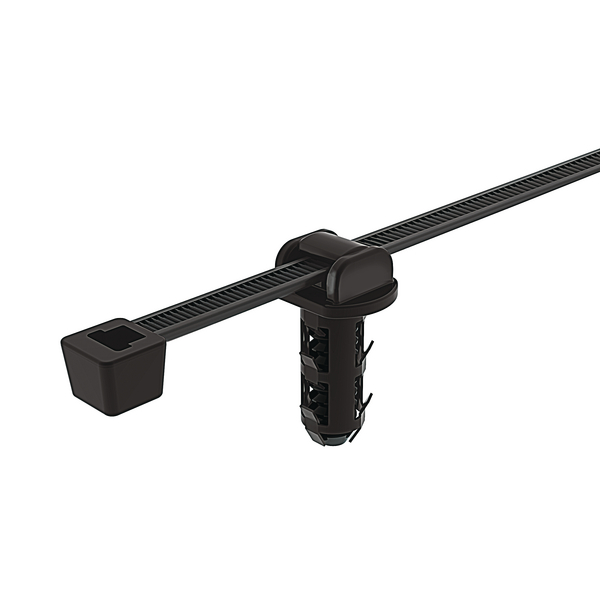

Fixing tie for hole (round), inside serrated, Ø1-30.0mm, black, 500pcs.
Številka proizvoda 156-00847 | T30RDHA8.4x20-PA66HS/PA66HIRHS-BK Podrobnosti

  • Pre-assembled 2-piece fixing tie with deep hole anchor
  • The high 'pull off' forces are due to the integrated metal clamp
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises ingress of dust and dirt
  • Suitable for use within blind holes with or without thread
prikaži več izdelkov

Zahtevajte svojo individualno ponudbo zdaj

Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i
Colour Black (BK)
Identification Plate Position none
Key product features deep hole anchor
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Pack Cont. 500pcs.
Package Content packed in bag
PART DESCRIPTION T30RDHA8.4x20-PA66HS/PA66HIRHS-BK
Product Family Deep hole anchor DHA5.5 - DHA8.4
Product Group 2-piece fixing ties with deep hole anchor, with disc, for round holes
Variant Inside Serrated
Bundle Diameter max (metric) 30.0mm
Bundle ∅ 1-30.0mm
Bundle ∅ min. 1mm
for Hole ∅ (FH) 8.3 - 8.5 mm
for Panel Thickness min - max 20
Height (H) 24.65mm
Length (L) 200mm
Min.Tensile Strength 135N
Weight/Unit 0.002138kg
Width (W) 4.6mm
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
Specifications
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026435992
Packaging 1 - Height (m) 0.11m
Packaging 1 - Length (m) 0.22m
Packaging 1 - Qty 500
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00726
Packaging 1 - Weight (kg) 1.098135kg
Packaging 1 - Width (m) 0.3m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 6000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 13.97362kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 72000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 188.664kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121717
