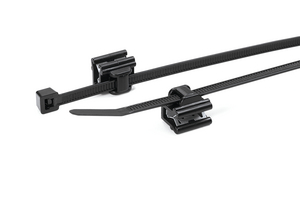

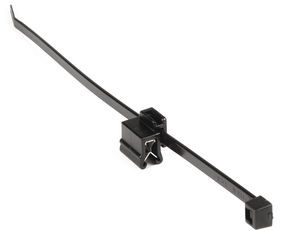

Fixing tie for edge, inside serrated, Ø5.0-45.0mm, black, 100pcs.
Številka proizvoda 156-00387 | T50REC21-PA66HS/PA66HIRHS-BK Podrobnosti

  • Pre-assembled 2-piece fixing tie with EdgeClip
  • Cable tie head can be moved after bundling
  • EC9, EC10, EC21 and EC22 are for minimum bundle diameters of 1 mm
  • For edges of 1 – 3 mm
Velikost paketa

Zahtevajte svojo individualno ponudbo zdaj

Application These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel building and electrical industry.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO9, EVO9SP
Cable Tie Polyamide 6.6, heat and UV-stabilised (PA66HSUV)
Colour Black (BK)

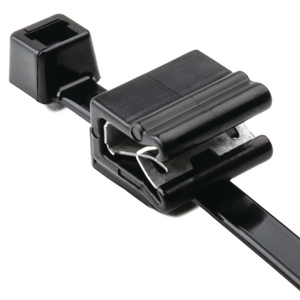

Description Available with either 'inside' or 'outside' serrated ties these two piece assemblies simply push onto an edge with thicknesses from 1.0 to 3.0mm. The high 'pull off' forces are due to the integrated metal clamp. Different Edge Clip variations are available. One version allows for cables to run parallel to the edge, whilst another allows for installation at 90 degrees to the edge. The clip is simply pushed on by hand and held firmly in place by the integrated metal clamp. No fixing hole is necessary. Combined with the outside serrated (OS) ties, specially designed to protect cables from chafing and wear, the Edge Clip family provides an excellent fastening solution.
Fixation Method EdgeClip, sideway, assembled, 2 piece
Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Steel C75S (C75S)
Identification Plate Position none
Key product features for narrow bundling
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Pack Cont. 100pcs.
Package Content packed in bag
PART DESCRIPTION T50REC21-PA66HS/PA66HIRHS-BK
Product Family EdgeClip-Series, 1.0 - 3.0 mm, side fixing
Product Group 2-piece fixing ties for edges
Releasable Closure (Yes/No) No
Variant Inside Serrated
Bundle Diameter max (metric) 45.0mm
Bundle ∅ 5.0-45.0mm
Bundle ∅ min. 5.0mm
for Panel Thickness min - max 1 - 3 mm
Height (H) 1.2mm
Height (H2) 13.4mm
Length (L) 202mm
Length (L2) 15.0mm
Min.Tensile Strength 225N
Thickness (T) 1.2mm
Width (W) 4.6mm
Width (W2) 10.0mm
Flammability UL 94 HB
Operating Temperature -40 °C to +105 °C
Specifications
Country of Origin JP
GTIN-13 / EAN 4944387951769
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
