Fixing tie for hole (round), inside serrated, Ø2.0-50.0mm, black, 1000pcs.
Številka proizvoda 157-00001 | T50RTM25E-PA66HS-BK Podrobnosti

  • Cable tie head always situated in defined position
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
prikaži več izdelkov

Zahtevajte svojo individualno ponudbo zdaj

Application Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO9, EVO9SP
Colour Black (BK)
Fixation Method Fir tree for round holes
Identification Plate Position none
Material Polyamide 6.6, heat stabilised (PA66HS)
Pack Cont. 1000pcs.
Package Content packed in bag

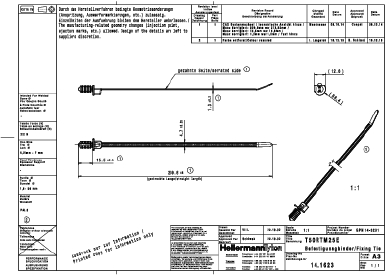

PART DESCRIPTION T50RTM25E-PA66HS-BK
Product Family Fir tree parts FT6
Product Group 1-piece fixing ties with fir tree, with disc, for round holes
Releasable Closure (Yes/No) Yes
Tie Closure plastic pawl
Variant Inside Serrated
Bundle Diameter max (metric) 50.0mm
Bundle ∅ 2.0-50.0mm
Bundle ∅ min. 2.0mm
Disc ∅ 12.6mm
for Hole ∅ (FH) 6.25 - 7.0 mm
for Panel Thickness min - max 2.3 - 13.9 mm
for Panel Thickness min - max 0.1 - 0.5 "
Height (H) 1.3mm
Length (L) 203.0mm
Length of Fir Tree 15.5mm
Min.Tensile Strength 225N
Panel Thickness max. 2.3 - 13.9mm
Thickness (T) 1.3mm
Weight/Unit 0.001851kg
Width (W) 4.6mm
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +125 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised (Yes/No) No
Country of Origin MX
Customs Number 39269097
GTIN-13 / EAN 4031026420691
Packaging 1 - Height (m) 0.08m
Packaging 1 - Length (m) 0.41m
Packaging 1 - Qty 1000
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00918
Packaging 1 - Weight (kg) 1.851001kg
Packaging 1 - Width (m) 0.28m
Packaging 3 - Height (m) 0.21589999999999998m
Packaging 3 - Length (m) 0.606425m
Packaging 3 - Qty 5000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.052
Packaging 3 - Weight (kg) 10.115005kg
Packaging 3 - Width (m) 0.396875m
Packaging 4 - Height (m) 1.224m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 75000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.175
Packaging 4 - Weight (kg) 172.725kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121717
