Fixing tie with pipe/tube holder, Ø20.0-25.0mm, black, 1000pcs.
Številka proizvoda 156-01714 | T50SMVCLOC20-25-PA66HIRHSUV-BK Podrobnosti

  • Fixing Clip offers full 360° rotation
  • Inside serrated cable tie
  • Routed cable can move in any direction in relation to the fixing point
  • Automatic closure clip

Zahtevajte svojo individualno ponudbo zdaj

Application The fasteners interconnect two different bundles of goods, of various size and type. The mobility of the fixing provides a secure grip and protects the cables or bundles, even in difficult conditions.
Cable Tie Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Cable ∅ max 50.0mm
Cable ∅ min 2.0mm
Colour Black (BK)
Fixation Method Omega Clip
Identification Plate Position none
Key product features lockable, rotatable
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Pack Cont. 1000pcs.
Package Content packed in carton

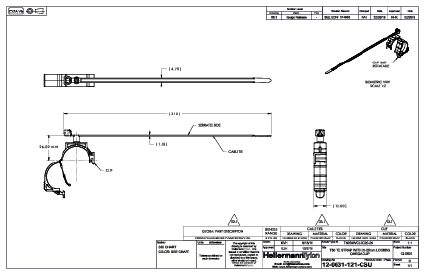

PART DESCRIPTION T50SMVCLOC20-25-PA66HIRHSUV-BK
Product Group 2-piece fixing ties with pipe clip
Attach to Diameter 0.79 - 0.98 "
Attach to Ø 20.0 - 25.0mm
Bundle Diameter max (metric) 25.0mm
Bundle Diameter Nom. (ND) 20.0 mm - 25.0 mm
Bundle ∅ 20.0-25.0mm
Bundle ∅ min. 20.0mm
Depth (D) 12.0mm
Height (H) 38.9mm
Length (L) 210.0mm
Length (L2) 26.0mm
Min.Tensile Strength 225N
Weight/Unit 0.006kg
Width (W) 12.0mm
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +110 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised (Yes/No) Yes
Country of Origin MX
Customs Number 39269097
GTIN-13 / EAN 4031026577227
Packaging 3 - Height (m) 0.37465m
Packaging 3 - Length (m) 0.59055m
Packaging 3 - Qty 1000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0646
Packaging 3 - Weight (kg) 6.82kg
Packaging 3 - Width (m) 0.2921m
Packaging 4 - Height (m) 1.269m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 12000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.218
Packaging 4 - Weight (kg) 102.84kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121702
