For new projects please use part number 156-03034!

Fixing tie with pipe/tube holder, inside serrated, ⌀2.0-35.0mm, black, 500pcs.
Številka proizvoda 156-00447 | T50SVC4-PA66HS/PA66HIRHS-BK |

Copied
T50SVC5, T50SVC4
T50SVC5 rotates in any direction.

    Ne pozabite

    Zahtevajte svojo individualno ponudbo zdaj

     Zahtevajte ponudbo

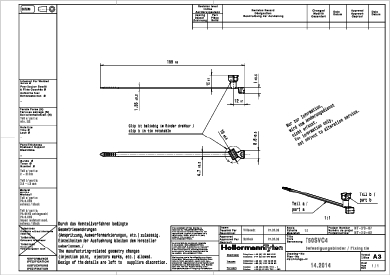

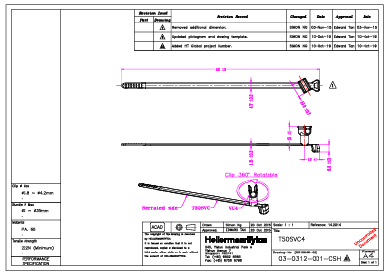

    Downloads CAD-Download
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Internet Customer Notice For new projects please use part number 156-03034!
    Key product features lockable, rotatable
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Min.Tensile Strength 222N
    PART DESCRIPTION T50SVC4-PA66HS/PA66HIRHS-BK
    Package Content 500pcs.
    Package Content packed in bag
    Product Group 2-Piece Fixing Ties with Pipe Clip, twistable 360°
    Tie Closure plastic pawl
    Type T50SVC4
    Weight/Unit 0.0015kg
    Attach to ⌀ 3.8 - 4.2
    Bundle ⌀ 2.0-35.0mm
    Bundle ⌀ max. 35.0mm
    Bundle ⌀ min. 2.0mm
    Length (L) 155mm
    Thickness (T) 1.35mm
    Width (W) 4.7mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 4031026298986
    Packaging 1 - Height (m) 0.2m
    Packaging 1 - Length (m) 0.395m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.03555m³
    Packaging 1 - Weight (kg) 0.779135kg
    Packaging 1 - Width (m) 0.45m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 6000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 10.16962kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 72000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 143.016kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
