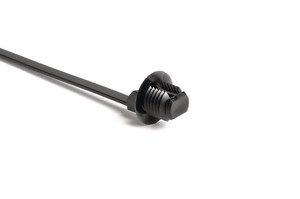

Fixing tie for hole (round), outside serrated, Ø1.6-30.0mm, black, 1000pcs.
Številka proizvoda 157-00155 | T60SOSFT12-E-PA66HS-BK Podrobnosti

  • Bundling and fixing solution
  • Ideal combination of materials and design
  • Different positions of the fixing anchor are available to fit installation space

Zahtevajte svojo individualno ponudbo zdaj

Application Tool EVOcut, MK9P, MK9P w/ Upper air, MK10-SB, MK21, EVO7, EVO7SP, EVO9, EVO9SP, EVO9HT
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
Colour Black (BK)
Fixation Method Fir Tree for oval holes
Identification Plate Position none
Material Polyamide 6.6, heat stabilised (PA66HS)
Pack Cont. 1000pcs.
Package Content packed in bag
PART DESCRIPTION T60SOSFT12-E-PA66HS-BK
Product Family Fir tree parts FT12
Product Group 1-piece fixing ties with fir tree, with disc, for round holes
Releasable Closure (Yes/No) No
Variant Outside Serrated
Bundle Diameter max (metric) 30.0mm
Bundle ∅ 1.6-30.0mm
Bundle ∅ min. 1.6mm
Disc ∅ 20.0mm
Fixing Hole Shape Circular
for Hole ∅ (FH) 12.0 - 12.5 mm, M14 x 1.5
for Panel Thickness min - max 1 - 6 mm
for Panel Thickness min - max 0 - 0.2 "
Length (L) 161.5mm
Min.Tensile Strength 300.0N
Panel Thickness max. 1.0 - 6.0mm
Weight/Unit 0.002514kg
Width (W) 5.5mm
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
Operating Temperature -40 °C to +105 °C
Specifications
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026459042
Packaging 1 - Height (m) 0.2m
Packaging 1 - Length (m) 0.47m
Packaging 1 - Qty 1000
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.05123
Packaging 1 - Weight (kg) 2.557597kg
Packaging 1 - Width (m) 0.545m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 4000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 11.050388kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 48000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 153.624kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
