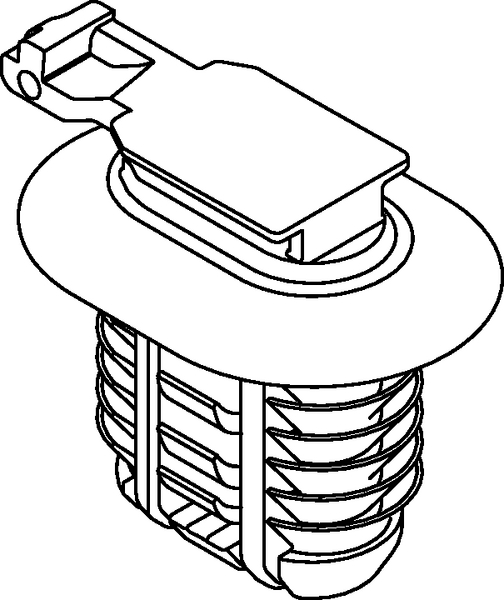

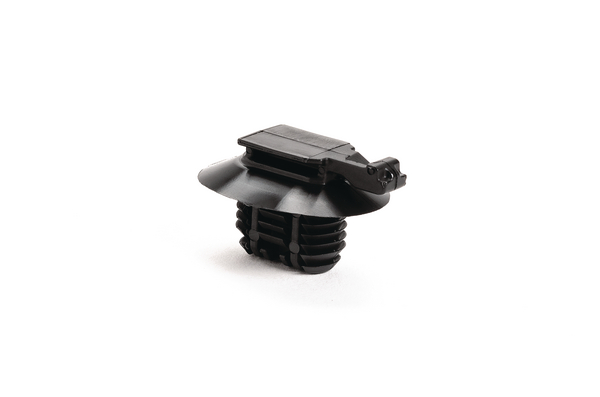

Connector clip, EWCAP-005-11, black, 1000pcs.
Številka proizvoda 151-00765 | CC09-PA66HIRHSUV-BK |

Copied
Oval fir tree ensures a tight connection without rotation.

    • Head design contains clamping rails to provide full circumferential compression around bundles
    • Bent tail allows for quick insertion into head
    Ne pozabite

    Zahtevajte svojo individualno ponudbo zdaj

     Zahtevajte ponudbo
    Downloads
    Application Connector Clips are used in applications that require a connector to be secured onto a mounting surface. Applications such as this can be found in a wide variety of industries such as automotive, truck, heavy equipment, white goods equipment, aerospace, solar panel, and wind power manufacturing.
    Colour Black (BK)
    Fixation Method Fir Tree for oval holes
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION CC09-PA66HIRHSUV-BK
    Package Content 1000pcs.
    Package Content packed in pack
    Product Family With FirTree
    Product Group Connector Clips for Oval Holes
    Type CC09
    UV-Stabilised Yes
    Weight/Unit 0.002kg
    Fixing Hole Shape Oval
    Height (H) 19.4mm
    Height (H2) 11.60mm
    Length (L) 33.05mm
    Panel Thickness 0.6 - 6.4mm
    Width (W) 21.59mm
    for Hole ⌀ (FH) 9.0 x 17.0 mm
    for Panel Thickness min - max 0.6 - 6.4 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026321332
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.1508125m
    Packaging 3 - Length (m) 0.43656m
    Packaging 3 - Qty 1000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0176m³
    Packaging 3 - Weight (kg) 2.34kg
    Packaging 3 - Width (m) 0.2667m
    Packaging 4 - Height (m) 1.201m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 42000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.153m³
    Packaging 4 - Weight (kg) 119.28kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
