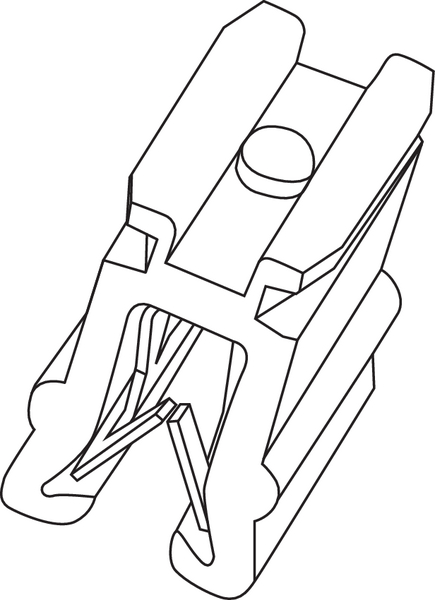

Connector clip for edge, black, 500pcs.
Številka proizvoda 151-01124
| CCIIEC6-MOD-PA66HIRHS-BK
|
Copied
- Simply push per hand onto a plastic edge
- Connector easily installed by simply pushing into place
- Connection can be released (non-destructive)
- Integrated metal clamp holds clip firmly in place
- Clamp consists of double tempered spring steel
- Ideal for applications where holes or adhesives are not suitable
prikaži več izdelkov
Prikaži manj
Zahtevajte ponudbo
More products in this product group:
| Application | The connector clip used here have been desgined in the automotive industry |
| Colour | Black (BK) |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | CCIIEC6-MOD-PA66HIRHS-BK |
| Package Content | 500pcs. |
| Package Content packed in | bag |
| Product Family | 1 - 3 mm, 1.5 - 4 mm and 3 - 6 mm |
| Product Group | Connector Clips for Edges |
| Short Description | Connector clip, edge, black |
| Type | CCIIEC6-MOD |
| Weight/Unit | 0.00144kg |
|
|
|
| Country of Origin | CN |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026458977 |
| Packaging 1 - Height (m) | 0.025m |
| Packaging 1 - Length (m) | 0.235m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.001674375m³ |
| Packaging 1 - Weight (kg) | 0.735kg |
| Packaging 1 - Width (m) | 0.285m |
| Packaging 3 - Height (m) | 0.22m |
| Packaging 3 - Length (m) | 0.57m |
| Packaging 3 - Qty | 10000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0489m³ |
| Packaging 3 - Weight (kg) | 15.405kg |
| Packaging 3 - Width (m) | 0.39m |
| Packaging 4 - Height (m) | 1.244m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 200000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.194m³ |
| Packaging 4 - Weight (kg) | 330.1kg |
| Packaging 4 - Width (m) | 0.8m |
