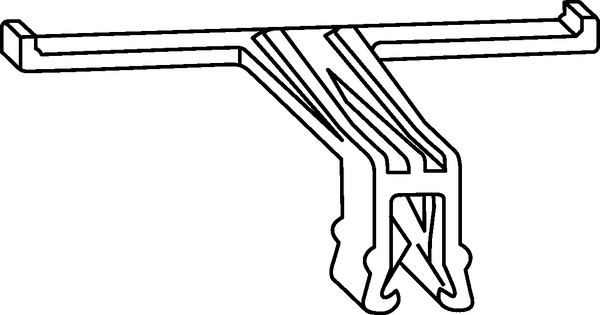

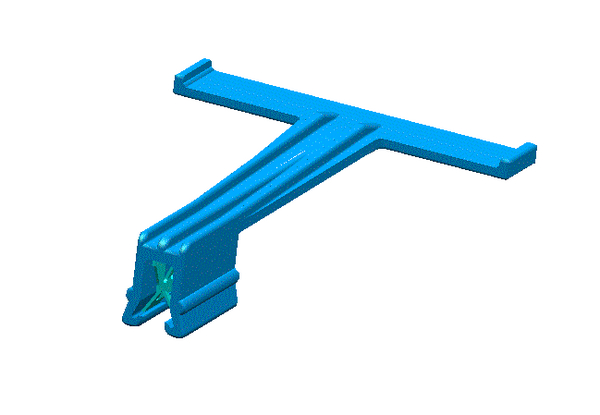

Bundling clip for edge, L=50.0mm, SO=65.0mm, black, 500pcs.
Številka proizvoda 151-00022 | EC30-PA66HIRHS-BK Podrobnosti

  • Especially for banding of cables and cable harnesses
  • Fastened onto bundling bar with cable ties or adhesive tape
  • Various base geometries for different routing directions avaliable
  • Integrated double tempered steel spring clamp holds clip firmly in place
  • Ideal for applications where holes or adhesives are not suitable
prikaži več izdelkov

Zahtevajte svojo individualno ponudbo zdaj

Colour Black (BK)
Fixation Method Edge Clip
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Pack Cont. 500pcs.
Package Content packed in bag
PART DESCRIPTION EC30-PA66HIRHS-BK
Product Family Bundling Clips for Edges, 1.0 - 3.0 mm, for Distance Routing
Product Group Bundling Clips for Edges for Distance Routing
Short Description Bundling Clip, edge, high impact modified, heat stabilised, black
Wings on clip base (Yes / No) YES
Bundling Bar Length 50.0mm
for Panel Thickness min - max 1 - 3 mm
Height (H) 13.5mm
Length (L) 50.0mm
Length (L2) 65.0mm
Offset Length 65.0mm
Panel Thickness max. 1.0 – 3.0mm
Weight/Unit 0.003087kg
Width (W) 9.0mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +80 °C
Specifications
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026250281
Packaging 1 - Height (m) 0.075m
Packaging 1 - Length (m) 0.385m
Packaging 1 - Qty 500
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00953
Packaging 1 - Weight (kg) 1.572635kg
Packaging 1 - Width (m) 0.33m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 4000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 13.40108kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 48000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 181.8kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
