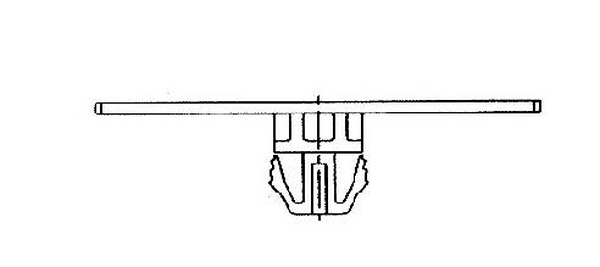

Bundling clip for hole (oval), L=71.0mm, SO=41.5mm, natural, 500pcs.
Številka proizvoda 151-00093 | HCL1-PA66-NA

Copied

Zahtevajte svojo individualno ponudbo zdaj

Application Bundling clips are designed to provide simple and easy methods of securing cable bundles, hoses, or pipes. They are fastened onto the tape bar using bundle or cable ties. The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters. Standard bundling clips are available as well as standoff and stud mount versions.
Colour Natural (NA)
Fixation Method Arrowhead for oval holes
Material Polyamide 6.6 (PA66)
PART DESCRIPTION HCL1-PA66-NA
Pack Cont. 500pcs.
Package Content packed in bag
Type HCL1
Bundling Bar Length 71.0mm
Fixing Hole Shape Oval
Length (L) 71.0mm
Offset Length 41.5mm
Panel Thickness max. 0.7 - 3.0mm
for Hole ⌀ (FH) 7.0 x 12.0 mm
for Panel Thickness min - max 0.7 - 3 mm
Country of Origin GB
GTIN-13 / EAN 5022660307607
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
