29/03/2024

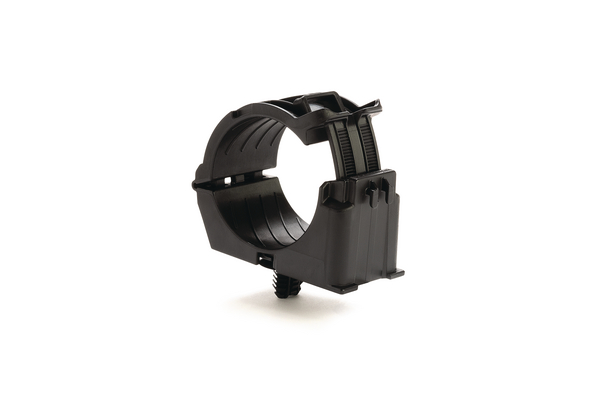

Cable clip, T=0.6 - 6.75mm, Ø7.0 x 12.0 mm, Dmin=36.01mm, Dmax=50.8mm, black, 200pcs.
Številka proizvoda 156-02648 | IRCDFTOVAL-PA66HIRHSUV-BK Podrobnosti

  • Building on the Ratchet P-Clamp family, the Center Mount Ratchet Clamp (CMRC) family offers fast and versatile installation of lines, hoses and cables
  • Designed for applications where space is limited or when a staggered mounting option is not ideal
  • Depending on the variant, the CMRC can be screwed on with an M6/M8/M10 screw or attached to an M8 threaded bolt
  • The variants for bolt attachment enable time-saving installation with a reliable hold

Zahtevajte svojo individualno ponudbo zdaj

Application The Inline Ratchet Clamp family is a perfect fit when facing space constraints or where offset mounting options are not ideal. Easily twists onto existing threaded rods, eliminating the need for additional hardware. The robust design and durable materials make it ideal for heavy duty applications, both in- and outdoors. The one-piece adjustable clamp can be closed by hand to the desired diameter. The release feature provides easy and nondestructive removal of cables simply by using a flat-head screwdriver. This allows the clamp to be reused without removing or replacing any bolts or screws.
Colour Black (BK)
Fixation Method Fir Tree for oval holes
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Pack Cont. 200pcs.
Package Content packed in bag
PART DESCRIPTION IRCDFTOVAL-PA66HIRHSUV-BK
Product Family In-Line Ratchet P-Clamp, D-Series
Product Group Fixing elements with fir tree for oval holes
Bundle Diameter max (metric) 50.8mm
Bundle ∅ 36.01-50.8mm
Bundle ∅ min. 36.01mm
Fixing Hole Shape Oval
for Hole ∅ (FH) 7.0 x 12.0 mm
for Panel Thickness min - max 0.6 - 6.8 mm
Length (L) 34.8mm
Min.Tensile Strength 445N
Panel Thickness max. 0.6 - 6.75mm
Width (W) 34.9mm
CE Certification No
CSA Certified No
Flammability UL 94 HB
Operating Temperature -40 °C to +105 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised (Yes/No) Yes
Country of Origin MX
GTIN-13 / EAN 4031026717555
Packaging 3 - Height (m) 0.37465m
Packaging 3 - Length (m) 0.59055m
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0646
Packaging 3 - Width (m) 0.2921m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
