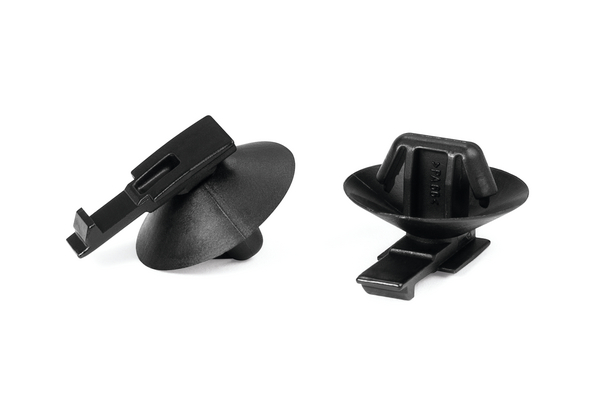

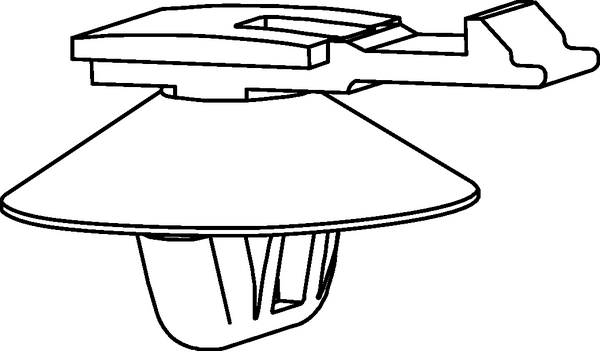

Connector clip for hole (oval), EWCAP-005-11, black, 1000pcs.
Številka proizvoda 133-00004 | STECKERHALTER-OVALFUSS-PA66HIRHS-BK

Copied
  • Easy to install by simply pushing into place
    Connection can be released (non-destructive)
    One fit tree foot part can be used for a variety of panel thicknesses
    Disc covers the hole to prevent dust and dirt gaining access

Zahtevajte svojo individualno ponudbo zdaj

Application The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
Anti rotation (Yes / No) NO
Colour Black (BK)
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION STECKERHALTER-OVALFUSS-PA66HIRHS-BK
Package Content 1000pcs.
Package Content packed in bag
Product Family With Arrowhead
Product Group Connector Clips for Oval Holes
Short Description Connector Clip, oval hole 6.2 - 12.2 mm, arrow head, high impact modified, heat stabilised, black - STECKERHALTER-OVALFUSS
Type STECKERHALTER-OVALFUSS
Weight/Unit 0.000965kg
Disc ⌀ 22.0mm
Fixing Hole Shape Oval
Height (H) 15.8mm
Length (L) 29.5mm
Panel Thickness max. 0.5 - 3.0mm
Width (W) 22.0mm
for Hole ⌀ (FH) 6.2 - 12.2 mm
for Panel Thickness min - max 0.5 - 3 mm
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
Operating Temperature -40 °C to +105 °C
ROHS compliant Yes
Specifications
Country of Origin FR
Customs Number 39269097
GTIN-13 / EAN 4031026228303
Packaging 1 - Height (m) 0.055m
Packaging 1 - Length (m) 0.34m
Packaging 1 - Qty 1000
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.006919
Packaging 1 - Weight (kg) 0.965kg
Packaging 1 - Width (m) 0.37m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 12000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 12.4kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 144000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 169.8kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 31162305
