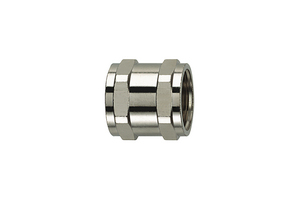

HelaGuard Accessories : ACP-M32

Coupler with 2 Internal Threads M32, Številka proizvoda: 166-50403


  • Can be used to convert from external to internal thread

Certifikati in standardi


Internally threaded, nickel plated brass.

ACP Couplers so primerne za uporabo v naslednjih industrijskih panogah

  • Electronics Industry Electronics Industry
  • Industrial Automation Industrial Automation
Colour Metal (ML)
Features and Benefits Internally threaded, nickel plated brass.
Pack Cont. 10pcs.
Package Quantity per Bag
Product Family ACP Couplers
Product Group HelaGuard Accessories
Short Description Coupler with 2 Internal Threads M32
Variant Straight
Across Corners (A/C) 39mm
Length (L) 32.5mm
Thread Size M32
ELV compliant Dir. Art. 4 (2) YES
Halogenfree Yes
Hazardous good No
Material Nickel Plated Brass (NPB)
Operating Temperature - °C -100 °C to +300 °C
EAN / GTIN 4031026310176
Packaging 1 - Height (m) 0.035m
Packaging 1 - Length (m) 0.19m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00106
Packaging 1 - Weight (kg) 1.18kg
Packaging 1 - Width (m) 0.16m
Weight 1.18kg
ETIM 6.0 EC001172
ETIM 7.0 Key EC001172
