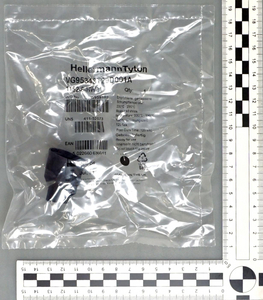

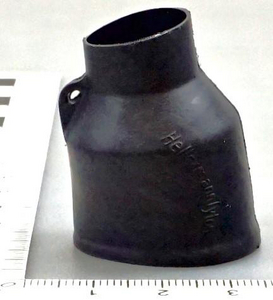

Right-Angle Shape VG-Style with Rib for Plugs black, PO-X
Številka proizvoda 411-52573
| 1152-6-HW21-PO-X-BK
|
Copied
- Used in conjunction with a circular grooved adaptor
- Provides strain relief and an environmental seal
Zahtevajte ponudbo
More products in this product group:
| Application | Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications. |
| Colour | Black (BK) |
| Material | Polyolefin, cross-linked (PO-X) |
| PART DESCRIPTION | 1152-6-HW21-PO-X-BK |
| Package Content | 1pc. |
| Package Content packed in | bag |
| Product Family | Helashrink 1100 Series, with rib |
| Product Group | Right-Angle Shapes, VG style |
| Short Description | Right-Angle Shape VG-Style with Rib for Plugs black, PO-X |
| Type | 1152-6-HW21 |
| Variant | For plug |
| Weight/Unit | 0.055kg |
|
|
|
| ⌀H max. b | 10.5mm |
| ⌀H min. a | 24mm |
| ⌀J max. b | 6mm |
| ⌀J min. a | 14mm |
| Angle | 90 |
| Flexibility | Flexible |
| For Object Outside Diameter | 13.2-21.3 mm |
| HW ± 20 % | 1.3mm |
| HW ± 30 % | 1.3mm |
| JW ± 20 % | 1.0mm |
| JW ± 30 % | 0.5mm |
| M nom. | 19.0mm |
| P ± 10 % | 32mm |
| P ± 20% | 32mm |
| R ± 10 % | 25mm |
| S nom. | 10mm |
| T ± 10 % | 1.0mm |
| T ± 20 % | 1mm |
| V max. | 3.3mm |
| V ± 20% | 1mm |
| Adhesive | W21 |
| Designation as per VG-Norm | VG 95343 T29 D 001 A |
| Dielectric Strength | 15kV/mm |
| Dielectric Strength test method | ASTM D2671 |
| ELV compliant (Article 4 - 2) | Yes |
| Flammability | ASTM D635 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Min. Shrink Temperature - °C | +135 °C |
| Nato number | 5970-12-393-7250 |
| Operating Temperature | -55 °C to +135 °C |
| ROHS compliant | Yes |
| Shelf Life | 5 years |
| Specifications |
|
| Specifications | VG 95343-29:2020-12 |
| Tensile Strength | 10MPa |
