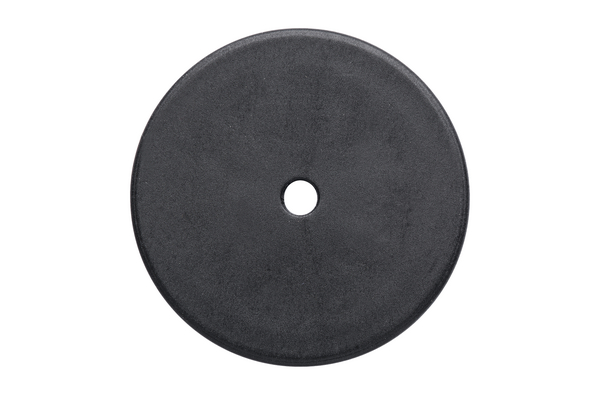

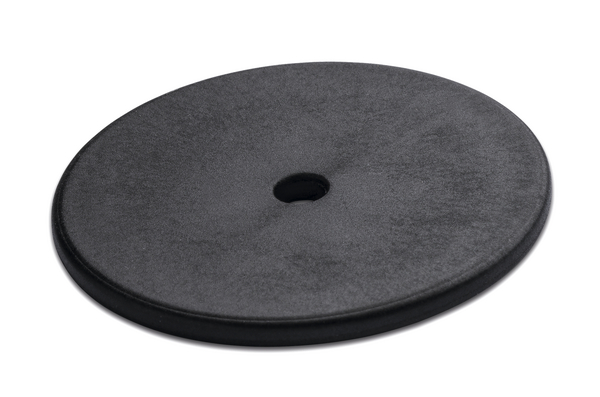

RFID hard tag, 869 MHz (UHF), bolt-on, ⌀50.00mm, H=3.50mm, black, 250pcs.
Številka proizvoda 556-00809
| RFID HARDTAG DISC-PPA-BK
|
Copied
This product is not available anymore.
- Identification element with integrated RFID transponder according to international standards
- Rewritable memory
- Made of very resilient carrier material
- Mounting holes for attachment using bolts, screws, nails or rivets
- Can be attached or embedded with the help of adhesives
- Clear identification of objects and / or locations through unique numbering systems
- Faster, more secure and error-free data management
- Robust
- Relatively large range
- Bulk detection of up to 500 transponders per second is possible thanks to the UHF frequency (depending on the infrastructure)
prikaži več izdelkov
Prikaži manj
Zahtevajte ponudbo
More products in this product group:
| Colour | Black (BK) |
| Fixation Method | bolt-on |
| Key product features | outdoor use, chemical resistance |
| Material | Polyphthalamide (PPA) |
| PART DESCRIPTION | RFID HARDTAG DISC-PPA-BK |
| Package Content | 250pcs. |
| Package Content packed in | bag |
| Product Family | HardLine – Ultra high frequency (UHF), bolt-on, blank |
| Product Group | Hard tags with RFID transponder |
| Short Description | RFID identification element diameter=50 mm, 869 MHz (UHF), PPA, black |
| Type | RFID HARDTAG DISC |

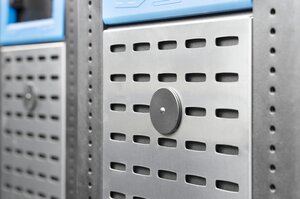

| Typical Application | The universally applicable identification element RFID HARDTAG DISC PPA 50 is ideally suitable for the identification of objects and places indoors and outdoors due to their innovative design. Due to their robustness, the marking element can bis fixed permanently to many objects and places. RFID elements of the HardLine product group are ideally suited for the clear identification of pallets or containers. The robust design allows those identification elements to withstand harsh conditions and rough treatment. An application would be the labelling of disposal bins like garbage cans, garbage cans and garbage containers. |
| Weight/Unit | 0.011kg |
| CE Certification | Yes |
| Data Retention | 20 years |
| ELV compliant (Article 4 - 2) | Yes |
| Halogen-free | No |
| Hazardous Goods | No |
| IP-Rating | IP68, IP69k |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Radio protocol | ISO 18000-6C, EPC Gen2 |
| Resistance to | Water: 100h (at room temperature), Salt mist: 100h (at room temperature), Fuel B: 100h (at room temperature), Petroleum: 100h (at room temperature), Mineral and vegetable oils: 100h (at room temperature) |
| Specifications |
|
| Specifications | IEC 62262: IK08, IEC 68-2-29, IEC 68-2-6 |
| Tamper proof | No |
| Type of RFID chip | NXP Ucode G2iM+ |
| Write endurance | 100000 cycles |
| Country of Origin | MY |
| Customs Number | 85235910 |
| GTIN-13 / EAN | 4031026621906 |
| Packaging 1 - Height (m) | 0.065m |
| Packaging 1 - Length (m) | 0.235m |
| Packaging 1 - Qty | 250 |
| Packaging 1 - Type | carton |
| Packaging 1 - Volume (m³) | 0.00290225m³ |
| Packaging 1 - Weight (kg) | 3.25kg |
| Packaging 1 - Width (m) | 0.19m |
| Packaging 3 - Height (m) | 0.156m |
| Packaging 3 - Length (m) | 0.403m |
| Packaging 3 - Qty | 1000 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.0155m³ |
| Packaging 3 - Weight (kg) | 13.5kg |
| Packaging 3 - Width (m) | 0.247m |
| Packaging 4 - Height (m) | 1.236m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 42000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.187m³ |
| Packaging 4 - Weight (kg) | 589.0kg |
| Packaging 4 - Width (m) | 0.8m |
| Storage Temperature | -40 °C to +90 °C |
