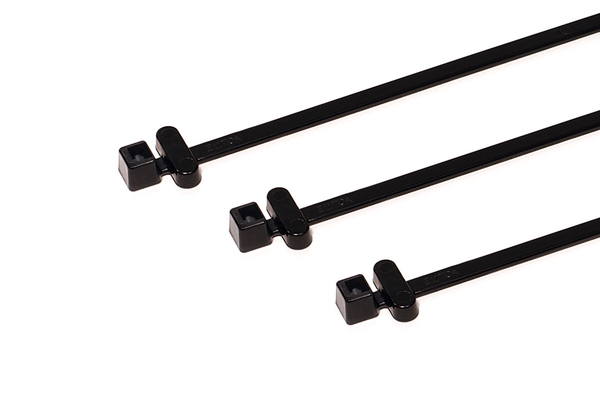

UV resistant cable ties with integrated RFID transponder : T50RFIDCHA

RFID cable tie 200x4.6 mm, 13.56 MHz (HF), black PA66W, Številka proizvoda: 111-02406

Lastnosti

  • UV resistant – for outdoor usage
  • Flexible, contactless data communication
  • Clear identification of objects through unique numbering
  • Faster data management compared to paper solution
  • More accurate documentation processes – prevention of human errors
  • Robust and resistant to harsh environments and cleaning processes
  • High frequency (HF – 13.56 MHz)
  • Rewritable
  • Special colours are possible on request

Certifikati in standardi

Uporaba

RFID cable ties provide an innovative solution for clear and rapid product identification. The nylon cable ties are equipped with an RFID transponder and therefore combine the numerous advantages of a regular cable tie with RFID technology. Made of PA66 W they are especially suitable for outdoor usage. The ties are especially suited for securing, serialisation, tracking and identification of products in the areas of resource management, electrical inspection, inventory, distribution and rental services as well as for easy management of maintenance and repair routines.

Application Tool EVO7, RFID-HS9BT-HF, RFID-DT22-HF, RFID - IOS READER, RFID-PNR-HF-R
Colour Black (BK)
Fixation Method None
Identification Plate Position none
Pack Cont. 100pcs.
Package Quantity per Bag
PART DESCRIPTION T50RFIDCHA-PA66W-BK
Product Family T50RFID W – High Frequency (HF)
Product Group UV resistant cable ties with integrated RFID transponder
Releasable Closure (Yes/No) No
Short Description RFID cable tie 200x4.6 mm, 13.56 MHz (HF), black PA66W
Tie Closure plastic pawl
Type T50RFIDCHA.WB3P
Variant Inside Serrated
Bundle ∅ max. 50mm
Bundle ∅ min. 1.5mm
Frequency 13.56 MHz (HF)
Length (L) 200mm
Min.Tensile Strength 225N
Width (W) 4.6mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogenfree Yes
Hazardous good No
Idle Temperature -40 °C to +85 °C
Material Polyamide 6.6, UV-resistant (PA66W)
Operating Temperature - °C -25 °C to +85 °C
Specifications
Specifications Article 41 of Directive 2014/34/EU, EN 50303:2000, EN 60079-0:2012, EN 60079-11:2012
EAN / GTIN 4031026604787
Packaging 1 - Height (m) 0.032m
Packaging 1 - Length (m) 0.325m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00158
Packaging 1 - Weight (kg) 0.1725kg
Packaging 1 - Width (m) 0.152m
Weight 0.1725kg
ETIM 6.0 EC000046
ETIM 7.0 Key EC000046
