Fitting for spiral-reinforced conduits, nom⌀16mm, M20, 90°, metal, 1pc.
Številka proizvoda 166-41401 | PSRSC16-90FMCSS-M20-SS316/PA6-ML |

Copied

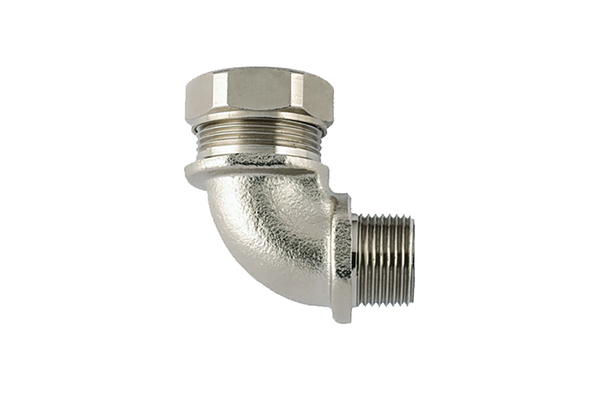

HelaGuard PCS-90FMC 90° Elbow Compression Fitting.
HelaGuard compression fitting, 90° with fixed external thread

    • Multipart 90° stainless steel (SS316) compression fitting including elastomeric seal
    • Can be used for knockouts or threaded entries as fitting rotates until tightened
    • Fits PSRSC conduits
    Ne pozabite

    Zahtevajte svojo individualno ponudbo zdaj

     Zahtevajte ponudbo
    Downloads CAD-Download
    Application 90° fitting, fixed external thread, stainless steel (SS316).
    Fulfils IP66, IP67, IP68 and IP69k with PSRSC conduits.
    Colour Metal (ML)
    Material Stainless Steel (SS316), Polyamide 6 (PA6)
    PART DESCRIPTION PSRSC16-90FMCSS-M20-SS316/PA6-ML
    Package Content 1pc.
    Package Content packed in bag
    Product Family PSRSC-90FMCSS 90° compression fitting
    Product Group Fittings for spiral-reinforced PVC conduits
    Short Description 90° Compression Fitting with rigid External Thread for Spiral-Reinforced PVC Conduits ø16mm M20
    Type PSRSC16-90FMCSS-M20
    Type of connection Thread
    Variant 90°-elbow
    Weight/Unit 0.09kg

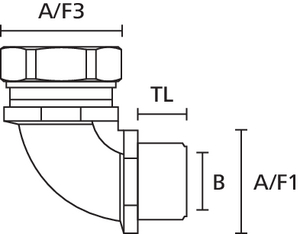

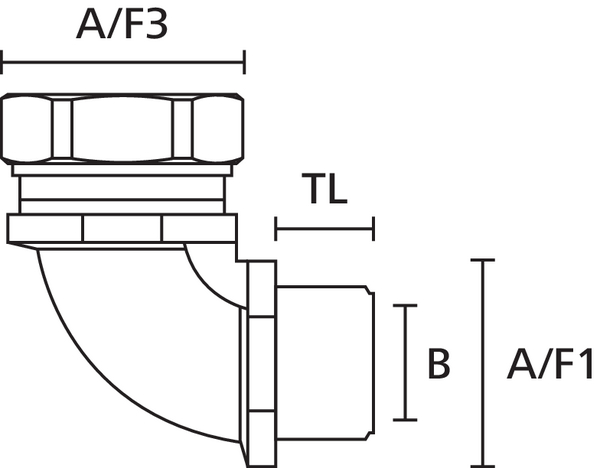

    A/F Nut (A/F3) 26mm
    Angle 90
    Height (H) 26mm
    Length (L) 46mm
    Lowest inner diameter 10.7mm
    Min. Bore Size (B) 10.7mm
    Nominal ⌀ 0.63"
    Nominal ⌀ 16mm
    Thread Length (TL) 13.0mm
    Thread Size M20
    CE Certification Yes
    ELV compliant (Article 4 - 2) YES
    Halogen-free Yes
    Hazardous Goods No
    IP-Rating IP68
    Operating Temperature -50 °C to +135 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 73072910
    GTIN-13 / EAN 4031026411118
    Packaging 1 - Height (m) 0.02m
    Packaging 1 - Length (m) 0.19m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.000608m³
    Packaging 1 - Weight (kg) 0.1kg
    Packaging 1 - Width (m) 0.16m
    ETIM 7.0 Key EC001178
    ETIM 8.0 Key EC001178
    ETIM 9.0 Key EC001178
    Zaščitni vodniki za kable Zaščitni vodniki za kable

    Zaščitni vodniki za kable

    Noben kabel brez uporabe ustrezne kabelske zaščite ni ustrezno zaščiten pred abrazijo, natezno silo in pred udarci. Zato morajo zaščitne cevi za kable (fleksibilni vodniki, pletenice in zaščitne spirale) zadostiti tem zahtevam in zagotoviti zaščito pred umazanijo in vlago ali odpornost na ekstremne temperaturne obremenitve.
