Fittings for spiral-reinforced PVC Conduits : PSRSC20-SMC-M20

Swivel Fitting for spiral-reinforced PVC Conduits ø20mm M20, Številka proizvoda: 166-41103

Lastnosti

  • Multipart compression fitting including elastomeric seal
  • Can be used for knockouts or threaded entries as fitting rotates until tightened
  • Fits PSRSC conduits

Certifikati in standardi

Uporaba

Straight fitting, swivel external thread, nickel plated brass.
Fulfils IP66, IP67, IP68 and IP69k with PSRSC conduits.

PSRSC-SMC swivel compression fitting so primerne za uporabo v naslednjih industrijskih panogah

  • Electronics Industry Electronics Industry
  • Industrial Automation Industrial Automation
Colour Metal (ML)
Features and Benefits Straight fitting, swivel, external thread, nickel plated brass. Fulfils IP66, IP67 and IP68 with PRSCS conduits.
Pack Cont. 10pcs.
Package Quantity per Bag
PART DESCRIPTION PSRSC20-SMC-M20-NPB/PA6-ML
Product Family PSRSC-SMC swivel compression fitting
Product Group Fittings for spiral-reinforced PVC Conduits
Short Description Swivel Fitting for spiral-reinforced PVC Conduits ø20mm M20
Type of connection Thread
Variant Straight

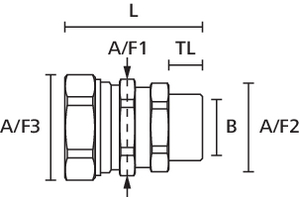

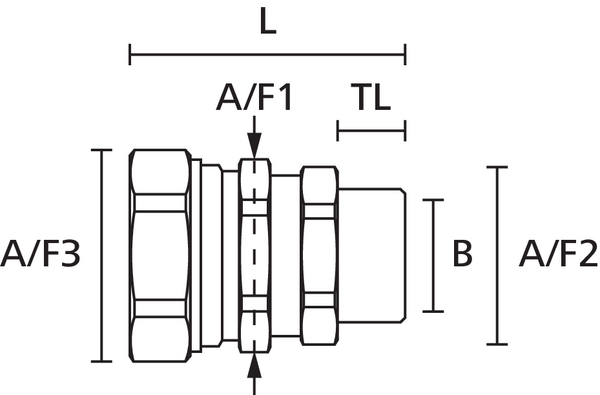

A/F Nut (A/F3) 29mm
A/F Thread (A/F2) 26mm
Height (H) 29mm
Length (L) 41.8mm
Lowest inner diameter 14.5mm
Min. Bore Size (B) 14.5mm
Nominal ∅ 20mm
Nominal ∅ (imperial) 13/16"
Outside ∅ max (OD max.) 29mm
Thread Length (TL) 10.0mm
Thread Size M20
ELV compliant Dir. Art. 4 (2) YES
Halogenfree Yes
Hazardous good No
IP-Rating IP68
Material Nickel Plated Brass (NPB), Polyamide 6 (PA6)
Material of fitting ETIM Metal (MET)
Operating Temperature - °C -50 °C to +135 °C
Specifications
EAN / GTIN 4031026410937
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.25m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0018
Packaging 1 - Weight (kg) 0.8kg
Packaging 1 - Width (m) 0.18m
Weight 0.8kg
ETIM 6.0 EC001178
ETIM 7.0 Key EC001178
