Cable tag, ladder-style, thermal transfer print, 51.5x10.4mm, white, pack=2000pcs.
Številka proizvoda 556-80000
| TAGHT10X51-4WH-PVDFX-WH
|
Copied
This product is not available anymore.
- High temperature cable marker
- For larger cables, bundles and harnesses
- Thermal transfer or laser beam printable
- Good mechanical strength and highly flexible
- Delivery in convenient storage boxes
Zahtevajte svojo individualno ponudbo zdaj
Zahtevajte ponudbo
More products in this product group:
| Application |

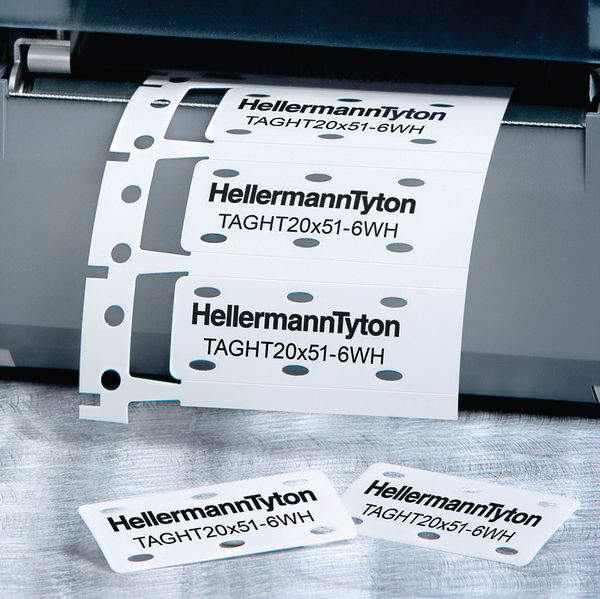

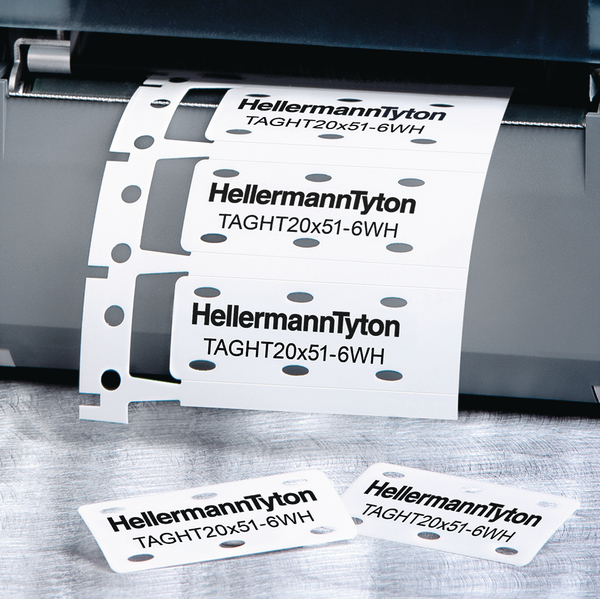

TAGHT is a high temperature, flame retardant cable marker used to identify larger cables and wire harnesses. The marker is ideal for applications where high temperatures and exposure to aggressive solutions are found, e.g. in the aerospace industry. They are supplied pre-cut and have been formatted into a convenient "ladder" system. Simply print and press out the required TAGHT and apply to cables and harness assemblies with cable ties, they are also suitable for retrofit purposes. Print with HellermannTyton's premium range of thermal printers and ribbons or a laser beam marking device. |
| Colour | White (WH) |
| Fixation Method | Others |
| Material | Polyvinylidene Fluoride cross-linked (PVDFX) |
| PART DESCRIPTION | TAGHT10X51-4WH-PVDFX-WH |
| Package Content | 2000pcs. |
| Package Content packed in | pack |
| Print Method | thermal transfer print |
| Print Method (Alternative) | laser beam print |
| Product Family | TAGHT – Aerospace - High Temperature Tiptags |
| Product Group | Identification tags for cable bundle "Ladder Style", thermal transfer |
| Short Description | Identification tags for cable bundle in ladder style 51x10 mm white |
| Type | TAGHT10X51-4WH |
| Variant | Thin-Wall |
| Weight/Unit | 0.001kg |
| With label space | Yes |
Prenos
| Dielectric Strength | 20kV/mm |
| Dielectric Strength test method | ASTM D2671 |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 224 VW-1 |
| Hazardous Goods | No |
| Operating Temperature | -55 °C to +225 °C |
| ROHS compliant | Yes |
| Recommended Ribbon Type | TTRHT |
| Reel Variant | ladder-style |
| Specifications |
|
| Specifications | MIL-STD-202G Method 215K, SAE - AS81531 |
| Country of Origin | GB |
| Customs Number | 39209990 |
| GTIN-13 / EAN | 4031026470368 |
| Markers per row | 1 |
| Packaging 1 - Height (m) | 0.1m |
| Packaging 1 - Length (m) | 0.175m |
| Packaging 1 - Qty | 2000 |
| Packaging 1 - Type | carton |
| Packaging 1 - Volume (m³) | 0.0030625m³ |
| Packaging 1 - Weight (kg) | 2.9kg |
| Packaging 1 - Width (m) | 0.175m |
