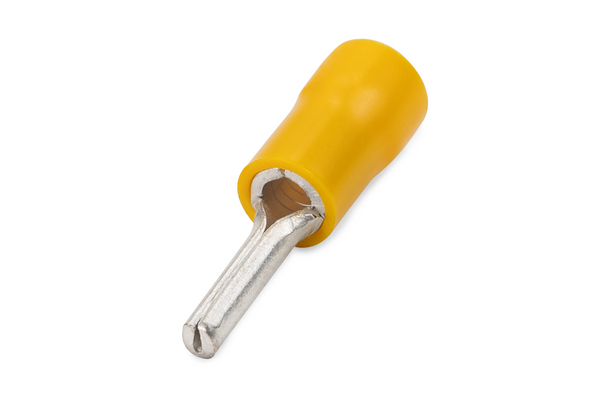

Pin connector terminal single grip, conductor sizes 4 - 6mm2, 25pcs, yellow
Art.-No. 924-00549
| 3P13-CU/PVC-YE
|
Copied
- Recomennded for basic applications
- Colour coded for easier identitfication
- Additional copper sleeve for premium vibration
- Copper terminal offers excellent elcetrical conductivity
- PVC insulated
- Packaged in resealable bags
- REACH compliant
Request your individual offer now
Request quote
More products in this product group:
| Application | Single grip pin connectors are a practical choice for connecting wires to terminal blocks or plug-in connectors where a solid pin is needed. Ideal for compact installations, they offer straightforward assembly and reliable contact. The PVC insulation supports electrical safety and helps reduce strain on the wire. Use with the HYYT1 crimping tool for consistent and efficient results. |
| Colour | Yellow (YE) |
| Description | PIN CONNECTOR YELLOW S/GRIP 13MM PIN 4MM²-6MM² |
| Local order number | 3P13 |
| Material | Copper (CU), Polyvinylchloride (PVC) |
| Max Current | 48A |
| Max Voltage | 600V |
| PART DESCRIPTION | 3P13-CU/PVC-YE |
| Package Content | 25pcs. |
| Package Content packed in | bag |
| Product Family | Single Grip Pre-Insulated Terminals |
| Product Group | Pin Connectors |
| Type | 3P13 |
