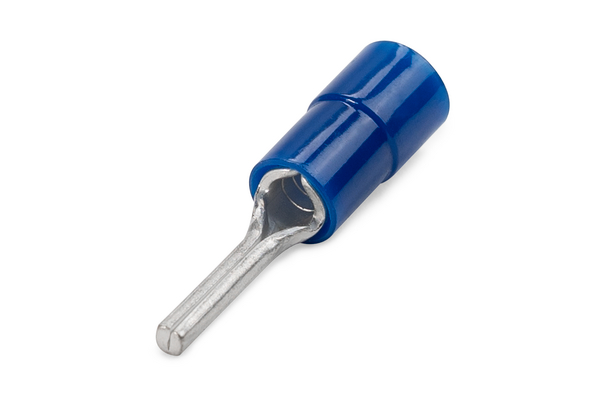

Single Grip Pre-Insulated Terminals
Art.-No. 924-00548 | 2P10-CU/PVC-BU Details

  • Recomennded for basic applications
  • Colour coded for easier identitfication
  • Additional copper sleeve for premium vibration
  • Copper terminal offers excellent elcetrical conductivity
  • PVC insulated
  • Packaged in resealable bags
  • REACH compliant
Show more

Request your individual offer now

Application The Single Grip Pin Connectors are recommended for connecting electrical conductors in various domestic and commerical applications. A terminal crimping tool is recommended for the application.
Colour Blue (BU)
Description PIN CONNECTOR BLUE S/GRIP 9MM PIN 1.5MM²-2.5MM²
Material Copper (CU), Polyvinylchloride (PVC)
PART DESCRIPTION 2P10-CU/PVC-BU
Pack Content 100pcs.
Package Content packed in bag
Product Family Pin Connectors
Product Group Single Grip Pre-Insulated Terminals
Type 2P10
Conductor Size Range mm² 1.5-2.5mm²
Diameter (D) 4.7mm
Length (L) 19.5mm
Length (L2) 10.7mm
Length (L3) 9.8mm
Max Current 27A
Max Voltage 600V
∅ (D2) 2.00mm
Operating Temperature +75 °C
ROHS compliant Yes
Specifications
