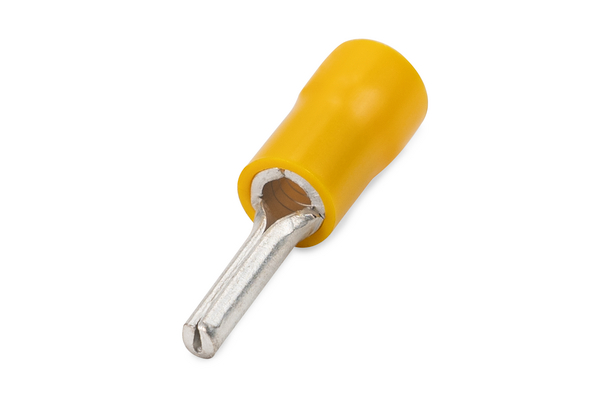

Pin connector terminal single grip, conductor sizes 4 - 6mm2, 25pcs, yellow

Art.-No. 924-00549

| 3P13-CU/PVC-YE

|

Three conductor sizes for versatile wiring needs
Colour coded for easier identification
Recommended for general purpose electrical installations
Packaged in resealable bag
REACH compliant

Add to watchlist

Request quote

Downloads

More products in this product group:

Pin Connectors

Base Data

Application	Single grip pin connectors are a practical choice for connecting wires to terminal blocks or plug-in connectors where a solid pin is needed. Ideal for compact installations, they offer straightforward assembly and reliable contact. The PVC insulation supports electrical safety and helps reduce strain on the wire. Use with the HYYT1 crimping tool for consistent and efficient results.
Colour	Yellow (YE)
Description	Pin connector single grip, conductor sizes 4 - 6mm², yellow
Local order number	3P13
Material	Copper (CU), Polyvinylchloride (PVC)
Max Current	48A
Max Voltage	600V
PART DESCRIPTION	3P13-CU/PVC-YE
Package Content	25pcs.
Package Content packed in	bag
Product Family	Single Grip Pre-Insulated Terminals
Product Group	Pin Connectors
Type	3P13

Product Dimensions

⌀ (D2)	2.7mm
Conductor Size Range mm²	4.0-6.0mm²
Diameter (D)	6.7mm
Length (L)	27mm
Length (L2)	13.6mm
Length (L3)	13.4mm

Downloads

Specifications

Operating Temperature	+75 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

GTIN-13 / EAN

9349519006723

More Information

Accessories

HYYT1 924-00315
Terminal Crimp Tools
