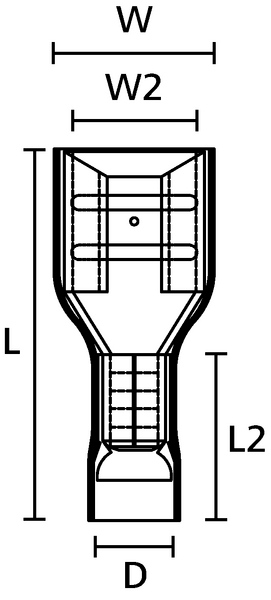

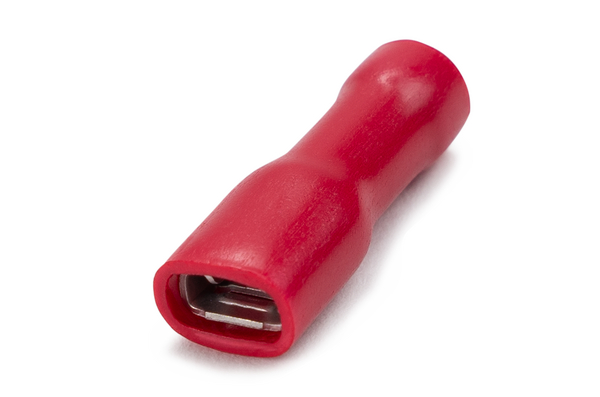

Quick connect fully insulated female funnel entry terminal, conductor sizes 0.5 - 1.5mm2, 4.8 x 0.8mm, 100pcs, red
Art.-No. 924-00437 | QDF1-5F/8-BS/PVC/CU-RD |

Request your individual offer now

Request quote

More products in this product group:

Application	Designed for applications where safety is a priority-particularly in environments that demand protection against accidental contact, such as inside machinery enclosures, near fan motors, or within open-access electrical cabinets. The insulation provides full coverage over the connection point, reducing the risk of exposure to live terminals and helping prevent electrical shorts. The funnel entry guides the wire smoothly into position, reducing strand damage and improving installation speed. Combined with a double grip crimp design, these terminals offer a secure, vibration-resistant connection that performs reliably in demanding conditions. For best results, pair with the HellermannTyton QDM Series and crimp using the HYYT7 tool to ensure consistent, safe and durable connections.
Colour	Red (RD)
Description	QC FEMALE FUNNEL RED D/GRIP F/INS 4.8MM X 0.8MM
Local order number	QDF1-5F/8
Material	Brass (BS), Polyvinylchloride (PVC), Copper (CU)
Max Current	10A
Max Voltage	300V
PART DESCRIPTION	QDF1-5F/8-BS/PVC/CU-RD
Package Content	100pcs.
Package Content packed in	bag
Product Family	Double Grip Pre-Insulated Terminals
Product Group	Quick Connect Fully Insulated Female Funnel Entry
Type	QDF1-5F/8
