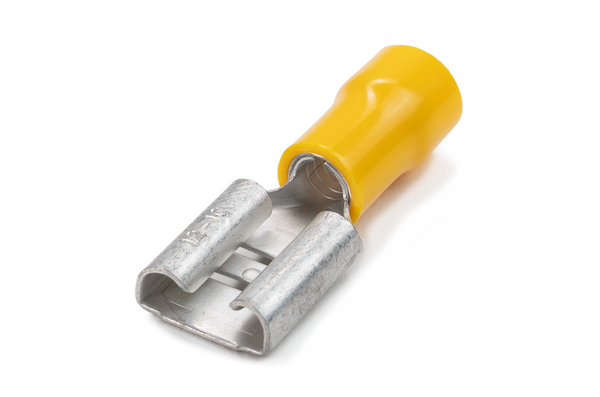

Double Grip Pre-Insulated Terminals
Art.-No. 924-00435 | QDF5-9-BS/PVC-YE Details

  • Double grip for high vibration industrial applications
  • Colour coded for easier identitfication
  • Additional copper sleeve for premium vibration
  • Copper terminal body with PVC insulation for enhanced wire insulation
  • Packaged in resealable bags
  • REACH compliant
Show more

Request your individual offer now

Application The Double Grip Quick Connect Terminals are recommended for connecting electrical conductors in challenging industrial applications. Manufactured with an additional copper sleeve and PVC insulation, for maximum vibration resistance and premium wire insulation. The Quick connect/Quick disconnect terminals allow for fast and dependable connection and disconnection of two wires. A terminal application tool is recommended.
Colour Yellow (YE)
Description QC FEMALE FUNNEL YELLOW D/GRIP 9.4MM X 1.0MM
Material Brass (BS), Polyvinylchloride (PVC)
PART DESCRIPTION QDF5-9-BS/PVC-YE
Pack Content 50pcs.
Package Content packed in bag
Product Family Quick Connect Female Funnel Entry
Product Group Double Grip Pre-Insulated Terminals
Type QDF5-9
Conductor Size Range mm² 4.0-6.0mm²
Diameter (D) 7mm
Length (L) 29.5mm
Length (L2) 12.5mm
Length (L3) 17mm
Max Current 24A
Max Voltage 300V
Width (W) 9.9mm
Operating Temperature +75 °C
ROHS compliant Yes
